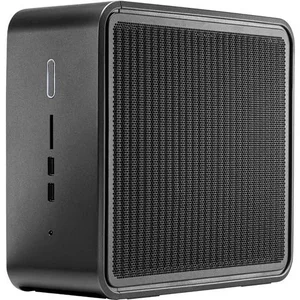

BKNUC9VXQNX1 - Intel BTO NUC

Essentials
Product Collection
Intel NUC Kit with 9th Generation Intel Core Processors
Code Name
Products formerly Quartz Canyon
Supported Operating Systems
Windows 10, 64-bit, Windows Server 2019, Linux
Board Number
NUC9VXQNB
Board Form Factor
PCIe
Internal Drive Form Factor
M.2 SSD
Number of Internal Drives Supported
3
Board Chipset
Mobile Intel CM246 Chipset
Processor Included
Intel Xeon E-2286M Processor (16M Cache, 2.40 GHz)
Intel vPro Platform Eligibility
Yes
Number of Cores
8
Number of Threads
16
Processor Base Frequency
2.40 GHz
Max Turbo Frequency
5.00 GHz Supplemental Information
Embedded Options Available
No Memory and Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-2666
Max Number of Memory Channels
2
Max Memory Bandwidth
42.6 GB/s
Max Number of DIMMs
2
ECC Memory Supported
Yes Processor Graphics
Processor Graphics
Intel UHD Graphics P630
Integrated Graphics
Yes
Graphics Output
2x Thunderbolt 3, HDMI 2.0a
Number of Displays Supported
3
Discrete Graphics
Via PCIe add-in card(s) Expansion Options
PCI Express Revision
Gen3
PCI Express Configurations
2x M.2 PCIe X4 slots (PCH), 1x M.2 PCIe X4 slot (CPU)
Double-wide PCIe X16 (CPU) slot shared with PCIe X4 (CPU) slot, 8" max card length
PCIe x4 Gen 3
1
PCIe x16 Gen 3
1
Removable Memory Card Slot
SDXC with UHS-II support
M.2 Card Slot (storage)
2x via PCH + 1x via CPU (NVMe) I/O Specifications
Number of USB Ports
11
USB Configuration
4x rear USB 3.1g2, 2x Thunderbolt 3 (USB 3.1g2), 2x front USB 3.1g2, 2x USB 2.0 via internal headers, 1x USB 2.0 internal
USB Revision
3.1 Gen2, 2.0
USB 2.0 Configuration (External + Internal)
3x int.
Total Number of SATA Ports
3
Max Number of SATA 6.0 Gb/s Ports
3
RAID Configuration
2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1)
Audio (back channel + front channel)
7.1 digital L+R+mic (F) L+R+TOSLINK (R)
Integrated LAN
Intel Ethernet Connection i219-LM and i210-AT
Integrated Wireless
Intel Wi-Fi 6 AX200
Integrated Bluetooth
Yes
S/PDIF Out Connector
TOSLINK
Additional Headers
CEC, 2x USB2.0, FRONT_PANEL
Number of Thunderbolt 3 Ports
2 Package Specifications
Chassis Dimensions
238 x 216 x 96mm Advanced Technologies
Intel Optane Memory Supported
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel vPro Platform Eligibility
Yes
TPM
Yes
TPM Version
Discrete 2.0
Intel Rapid Storage Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Platform Trust Technology (Intel PTT)
Yes Security and Reliability
Intel AES New Instructions
Yes
Intel Trusted Execution Technology
Yes Item Dimension (L"xW"xH")
18 x 15 x 16

Weight
32 lbs

Warranty Information
3-year limited
