Condition: New
UPS - AC 230 V - 210 Watt - 350 VA - RS-232 USB - output connectors: 4 - beige

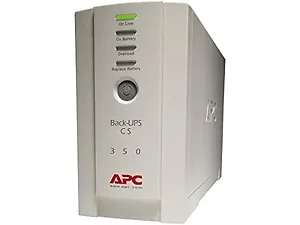

The APC BK350EI Uninterruptible Power Supply (UPS) provides essential power protection for business and IT equipment. This external, standby topology UPS delivers 210 Watts / 350 VA of output power, designed to safeguard devices from power interruptions and surges. It features a nominal output voltage of 120V and maintains a 50/60Hz +/- 3 Hz frequency. Input connections are NEMA 5-15P, with an auto-sensing input frequency. The unit includes a maintenance-free sealed lead-acid battery, offering an 8-hour typical recharge time, and is equipped with a USB interface for communication. Output connections consist of three NEMA 5-15R outlets for battery backup and an additional three NEMA 5-15R outlets for surge protection only, totaling six output connectors. This UPS is suitable for small office environments or individual workstations requiring reliable power backup and surge suppression for critical equipment, ensuring operational continuity during power fluctuations or outages.
Output
Output Power Capacity :210 Watts / 350 VA
Max Configurable Power :210 Watts / 350 VA
Nominal Output Voltage :120V
Output Frequency (sync to mains) :50/60Hz +/- 3 Hz
Topology :Standby
Waveform Type :Stepped approximation to a sinewave
Output Connections :
(3) NEMA 5-15R (Battery Backup)
(3) NEMA 5-15R (Surge Protection) Input
Nominal Input Voltage :120V
Input Frequency :50/60 Hz +/- 3 Hz (auto sensing)
Input Connections :NEMA 5-15P
Cord Length :6 feet (1.83 meters)
Input voltage range for main operations :98 - 140V Batteries and Runtime
Battery Type :Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time :8 hour(s)
Replacement Battery :RBC2
RBC Quantity :1 Communications and Management
Interface Port(s) :USB
Control panel :LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm :Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and Filtering
Surge energy rating :1020 Joules
Filtering :Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection :Analog phone line for phone/fax/modem/DSL (RJ-11 connector) Sustainable Offer Status
RoHS :Compliant
REACH :REACH: Contains No SVHCs
PEP :Available in Documentation tab
EOLI :Available in Documentation tab Item Dimension (L"xW"xH"):
14.5 x 7 x 9.5
Weight:
15.5 lb
Warranty Information:
2 Years Repair or Replace
The UPS uses a maintenance-free sealed lead-acid battery. It is replaceable with an RBC2 battery, and the unit requires one such battery.
The UPS provides a total of six NEMA 5-15R output connectors. Three of these offer battery backup, while the other three provide surge protection only.
This UPS is designed for protecting individual workstations, small office equipment, or other critical electronics from power outages, surges, and fluctuations. It provides temporary battery power during blackouts and filters electrical noise.
Yes, it includes data line protection for analog phone lines, suitable for phone/fax/modem/DSL connections via an RJ-11 connector.
BK350EI - Apc - Schneider Electric UPS ( EXTERNAL ) / 350 VA / UPS BATTERY - 1 X LEAD ACID - 4 OUTPUT CONNECTOR(S)
