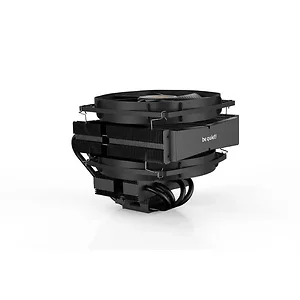

Be Quiet BK031 Dark Rock TF 2, 230W TDP, CPU cooler, Intel-1200/2066/1150/1151/1155 /2011(-3) Square ILM, AMD-AM4/AM3(+)

Specifications

• Mfr Part Number: BK031
• Features:
  • Socket compatibility AMD: AM4 / AM3(+)

  • Socket compatibility Intel: 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM

  • Extremely high cooling performance with 230W TDP

  • Two heat sinks with anti-vibration rubber inserts

  • Six high-performance 6mm heat pipes

  • Silent Wings 3 135mm with funnel shaped air-inlet and a Silent Wings 135mm for virtually inaudible operation of max. 27.1dB(A)

  • Optimized mounting system makes for an easy installation

  • Special black coating with ceramic particles enables perfect heat transfer

  • Brushed aluminum top cover for elegant look

  • Product conception, design and quality control in Germany
• Socket Type:
  • Intel: 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
  • AMD: AM4 / AM3(+)
• Fan:
  • Material : Aluminum

  • Fan model, number : 1x Silent Wings 3 135mm PWM / 1x Silent Wings 135mm PWM
  • Maximum power capacity (W TDP) : 230

  • Noise level (dB(A)) @ 50 / 75 / 100% PWM : 11.1 / 19.7 / 27.1

  • Number of heatpipes / diameter (mm) : 6 / 6

  • Speed @ 100% PWM/12V (rpm) : 1400 / 1300

  • Input current (A) : 0.2 / 0.4

  • Connector 4-pin PWM Lifespan (h / 25°C) : 300,000

  • Dimensions, incl. fan (L x W x H in mm) : 163 x 140 x 134

  • Weight incl. fan (g) : 945

  • Fan dimensions (L x W x H), (mm) : 135 x 135 x 22 / 135 x 135 x 25
• Heatsink:
  • Dimensions (L x W x H), (mm)  : 163 x 140 x 109
  • Number of fins top: 62 / bottom: 64

  • Fin material : Aluminum
  • Base material :  Copper
  • CPU contact surface   : CNC machined
  • Heatpipe number / Diameter (mm)  :6 / 6
  • Color  :Black
  • Surface treatment  :Ceramic coating
• EAN code: 4260052188705

• Dimensions, package (L x W x H), (mm) : 210 x 190 x 230

• Gross weight, package (kg) : 1,615
