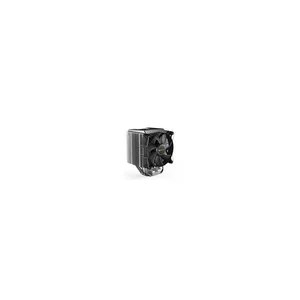

Be Quiet BK004 ! Shadow Rock 3 CPU Cooler - 190W TDP, HDT Technology

Specifications

• Cooling Performance: Impressive 190W TDP
• Heat Pipes: Five 6mm high-performance nickel-plated copper heat pipes with Heat Pipe Direct Touch (HDT) technology
• Fan: Decoupled Shadow Wings 2 120mm PWM high-speed fan, operating at only 24.4dB(A) at maximum fan speed
• Design: Asymmetrical construction to avoid memory slot blockage
• Material: Elegant brushed aluminum top cover with a bi-color surface
• Installation: Easy-to-install kit that can be mounted from above
• Warranty: 3-year warranty
• Socket Compatibility:
  • Intel: 1200, 2066, 1150, 1151, 1155, 2011(-3) Square ILM
  • AMD: AM4, AM3(+)
• Fan Specifications:
  • Model: 1x Shadow Wings 2 120mm PWM high-speed fan
  • Speed: 1600 RPM PWM
  • Noise Levels: 11.5 / 17.5 / 24.4 dB(A) at 50/75/100% speed
  • Rated Voltage: 12 V
  • Input Current: 0.20 A
  • Input Power: 2.4 W
  • Bearing Type: Rifle bearing
  • Motor: 4-pole fan motor
  • Connector: 4 Pin PWM
  • Cable Length: 220 mm
  • Life Expectancy: 80,000 hours @ 25°C
  • Dimensions: 120.0 x 120.0 x 25.0 mm
• Heatsink:
  • Number of Heat Pipes: 5x 6 mm
  • Material: Copper base with aluminum fins
  • Fins: 30 fins
  • Contact Surface: Heat pipe direct touch
  • Dimensions: 165.0 x 137.0 x 87.0 mm
• Thermal Design Power: 160 W
• Overall Dimensions: 130.0 x 163.0 x 96.0 mm (without mounting material)
• Weight: 0.71 kg
