Product Overview

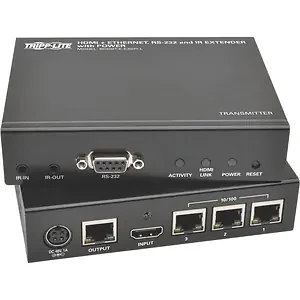

General InformationThe BHDBT-K-E3SPI-L HDBaseT HDMI over Cat5e/6/6a Extender Kit extends uncompressed HDMI audio and video, RS-232 serial and IR remote control signals up to 328 feet over a single Cat5e/6/6a cable, including an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz signal. In addition to HDMI, RS-232 and IR signals, this extender kit features built-in PoE technology, which powers the receiver over Cat5e/6/6a cable, eliminating the need for an external power source. Three built-in 10/100 Ethernet ports on both the transmitter and receiver allow connected devices, such as a Blu-ray player, cable/satellite box, and HDMI television, to communicate with each other and access online content via LAN.You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The two-way IR remote control feature(@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's P569-006-LOCK high-speed HDMI cables with locking connectors) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal. The plug-and-play BHDBT-K-E3SPI-L supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Attach the transmitter and receiver units to a wall, rack or pole with the included mounting hardware.Technical InformationConnectivity Technology: WiredNumber of Input Devices Supported: 1Number of Output Devices Supported: 1Maximum Operating Distance: 328 ftVideoGraphics Modes: 4KMaximum Video Resolution: 3840 x 2160Interfaces/PortsNetwork (RJ-45): YesHDMI In: YesHDMI Out: YesSerial Port: YesNumber of Network (RJ-45) Ports: 8Number of HDMI Inputs: 1Number of HDMI Outputs: 1Media & PerformanceMedia Type Supported: Twisted PairTwisted Pair Cable Standard: Category 6aPhysical CharacteristicsForm Factor: Rack-mountableForm Factor: Wall MountableForm Factor: Pole-mountableMiscellaneousPackage Contents: Transmitter Unit Receiver Unit IR-In Cable, 5 Ft. IR-Out Cable, 6 Ft. External Power Supply With C14 Inlet (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V, 1A), 4.5 Ft. C13 to NEMA 5-15P Power Cord, 6 Ft. Mounting Hardware Owner'S Manual Environmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 1 Year
