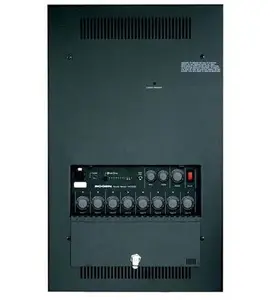

Product Overview
- 100 150 and 250 watt models; each with large power reserve - 8 module input bays accepts up to 2 signal-processing output modules and up to 8 input modules - Wide selection of advanced input and signal-processing output modules - Four priority levels between modules - 4-ohm 8-ohm 25V and 70V outputs - Secure permanent wall mounting (in-wall with BBF or surface-mount with BBS) - 11-segment LED output level meter registers Peak or Average output - Adjustable output level limiter with active indicator - Front-mounted tape output provides unbalanced signal level output - Independent volume controls for each input - Motorized master volume control with optional accessory RVCP for remote operation - External mute control - Bass and treble controls with center detent - 125 Hz Lo-cut switch - Tone control bypass switch - Optionally installable front-mounted input combo jack with 1/4in. stereo phone and female XLR capabilities for connection to user-supplied modules - Thermal short-circuit and overload protection - Thermally controlled 3-speed fan - UL and CSA listed - Components required for installation: Door (WMAD) and Back Box (BBF or BBS) both sold separately - Modules required but sold separately
