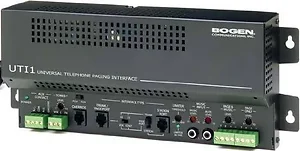

BG-UTI1 - Avaya 24V Universal Telephone Interface - Single Zone Paging

The UTI1 Universal Telephone Interface is designed for single-zone paging in one-way applications, making it ideal for self-amplified speaker systems.

It is compatible with all standard analog port types and features two audio outputs, each equipped with level controls capable of driving up to 150 Bogen self-amplified speakers. The unit comes with a 24V DC @ 1A internal power supply to power external devices.

Key features include:

• Single-zone paging capability
• Multiple telephone interface options including loop start trunk, ground start trunk, and station access
• Simple 2-switch setup for easy installation
• Override paging options available
• Programmable activation for AUX contacts
• Two distinct audio outputs: Page Only and Page with Background Music
• High impedance transformer-isolated background music input
• Variable music mute for enhanced control
• Night Ringer activation via contact closure
• Adjustable output limiter with visual indicators
• Non-volatile memory to retain setup data
• Microcontroller-based operational design
• Wall mounting flanges with optional rack panel kit available

This product also includes features for DTMF programming along with programmable timers to manage page duration. It is reliable, efficient, and comes with a two-year warranty for peace of mind.

The Avaya BG-UTI1 Universal Telephone Interface is engineered for single-zone paging applications, primarily supporting one-way communication through self-amplified speaker systems. This unit is suitable for businesses requiring a dedicated paging solution that integrates with existing analog telephone infrastructure. It accommodates various analog port types, including loop start, ground start, and station access. The interface provides two independent audio outputs, each with level controls, capable of powering up to 150 Bogen self-amplified speakers. An internal 24V DC @ 1A power supply is included for external device support. Key functionalities include override paging, programmable AUX contacts, and a background music input with variable mute. Setup is managed via a 2-switch configuration and DTMF programming, with non-volatile memory retaining settings. This interface addresses the need for reliable, integrated single-zone paging within a business environment.
