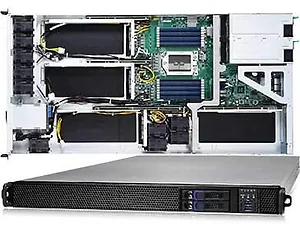

Tyan B8021G88V2HR-2T-N System B8021G88V2HR-2T-N 1U 4/6GPU Single Socket AMD EPYC 2x2.5HS Retail

System
Form Factor :
1U Rackmount
Chassis Model :
GA88
Motherboard Name :
S8021GM2NR-2T
Front Panel
Buttons :
(1) RST / (1) PWR w/ LED / (1) UID
LEDs :
(1) PWR / (2) LAN / (1) UID / (1) BMC event
I/O Ports :
(2) USB 3.0 ports External Drive Bay
Qty / Type :
(2) 2.5" Hot-Swap SSD/HDD
HDD Backplane Support :
SAS 12Gb/s /SATA 6Gb/s
Supported HDD Interface :
(2) SAS 12Gb/s / SATA 6Gb/s System Cooling Configuration
Redundancy : Yes
FAN : (10) 4cm fans
Heat Sink : (1) Passive CPU Heat sink Power Supply
Type :
ERP1U
Input Range :
AC 100-127V/12A / AC 200-240V/9.48A
Frequency :
47-63 Hz
Output Watts :
1600 Watts
Efficiency :
80 plus Platinum
Redundancy :
1+1 Processor
Qty / Socket Type :
(1) AMD Socket SP3
Supported CPU Series :
(1) AMD EPYC^TM 7000 Series Processor
System Bus :
1066/ 800/ 533 MHz
Average CPU Power (ACP) Wattage :
Max up to 180W Memory
Supported DIMM Qty :
(16) DIMM slots
DIMM Type / Speed :
DDR4 ECC RDIMM/LRDIMM 2666/2400
Capacity :
Up to 2,048GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS
Actual memory speed depends on memory population topology
Memory channel :
8 Channels per CPU
Memory voltage :
1.2V Expansion Slots
PCI-E :
Default configuration: (4) PCI-E Gen3 x16 slots (Full-height, 10.5" length, Double-width) + (1) PCI-E Gen3 x16 slot (Full-height, Half-length, Single-width)
Pre-install TYAN Riser Card :
(1) M2091-R riser card (right) for (1) PCI-E Gen3 x16 slot / (1) M8021-R16-1L-1 riser card for (1) PCI-E Gen3 x16 slot / (2) M5631-R16-1F-1 riser card for (2) PCI-E Gen3 x16 slots / (1) M8021-R32-2L-2 riser card for (1) PCI-E Gen3 x16 slot
Others:
Field Upgradable Option:
Optional Riser Cards: (1) M2091-R riser card (right) for (1) PCI-E Gen3 x16 slot , (1) M8021-R32-2L-1 riser card for (2) PCI-E Gen3 x16 slots, (1) M8021-R32-2L-2 riser card for (2) PCI-E Gen3 x16 slots, (2) M5631-R16-1F-1 riser card for (2) PCI-E Gen3 x16 slots /
Total PCI-E Slots Provided by the Field Upgradable Options:
(6) PCI-E Gen3 x16 slots (Full-height, 10.5"-length, Single-width) + (1) PCI-E Gen3 x16 slot (Full-height, Half-length, Single-width) LAN
Qty / Port :
(2) 10GbE ports / (1) PHY
Controller :
Intel X550-AT2
PHY :
Realtek RTL8211E Storage
NVMe :
Connector (M.2) :
(2) 22110/2280 (by PCI-E interface) Graphic
Connector type:
D-Sub 15-pin
Resolution :
Up to 1920x1200
Chipset:
Aspeed AST2500 I/O Ports
USB :
(2) USB3.0 ports (at front) / (1) USB3.0 ports (at rear)
COM :
(1) 2x12 pin-header
VGA :
(1) D-Sub 15-pin port
RJ-45 :
(2) 10GbE ports, (1) GbE dedicated for IPMI TPM (Optional)
TPM Support :
Please refer to our TPM supported list. System Monitoring
Chipset:
Aspeed AST2500
Temperature :
Monitors temperature for CPU and memory and system environment
Voltage:
Monitors voltage for CPU, memory, chipset and power supply
LED :
Over temperature warning indicator / Fan and PSU fail LED indicator
Others :
Watchdog timer support Server Management
Onboard Chipset :
Onboard Aspeed AST2500
AST2500 iKVM Feature :
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature :
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface BIOS
Brand / ROM size :
AMI / 32MB
Feature:
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S0, S5 / FAN speed control automatic Operating System
OS supported list :
Please refer to our AVL support lists. Regulation
FCC (SDoC) : Class A
CE (DoC) :
Class A
CB/LVD:
Yes
RCM :
Class A
VCCI :
Class A Operating Environment
Operating Temp. :
10^o C to 35^o C (50^o F to 95^o F)
Non-operating Temp. :
- 40^o C to 70^o C (-40^o F to 158^o F)
In/Non-operating Humidity :
90%, non-condensing at 35^o C RoHS
RoHS 6/6 Compliant :
Yes
