B75C-12-M-12F - Airmar B75C-12-M 12d Tilt Medium CHIRP Furuno 12-Pin Cable

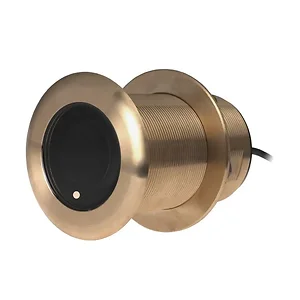

Airmar B75C-12-M 12d Tilt Medium CHIRP with Furuno 12-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25’)
• Exclusive Xducer ID® technology

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

• B75C-12-M-MM
• MMC-12F Cable

The Airmar B75C-12-M 12d Tilt Medium CHIRP transducer is designed for marine applications, providing depth and fast-response water temperature sensing. This bronze-housed unit is suitable for fiberglass or wood hulls with a deadrise range of 8� to 15�, and is recommended for boats up to 8 meters (25 feet) in length. It operates within a medium CHIRP frequency band of 80 kHz to 130 kHz, offering 50 kHz of total bandwidth. The 12� tilt angle corrects for hull deadrise, directing the beam vertically for improved echo returns and depth accuracy. With a 600 W power rating, it can achieve a maximum depth of 274 meters (900 feet). The B75C-12-M-12F includes a Furuno 12-Pin Mix-N-Match cable, making it a practical solution for integrating advanced sonar capabilities into compatible marine electronics setups.
