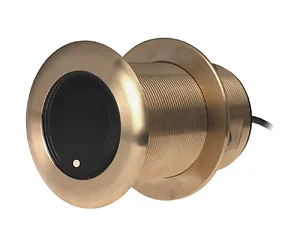

B75C-0-M-BL - Airmar B75C-0-M 0d Tilt Medium CHIRP Navico Blue 7-Pin Cable

Airmar B75C 0° Tlted Element Medium CHIRP Bronze Thru Hull with Navico Blue 7-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• 600 W of power with a maximum depth of 274 m (900')
• Medium frequency: 80 to 130 kHz
• 24° to 16° beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID® technology

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

• B75C-0-M-MM
• MMC-BL Cable

The Airmar B75C-0-M-BL is a bronze thru-hull transducer designed for marine applications, providing depth and fast-response water temperature sensing. It operates with a medium CHIRP frequency range of 80 to 130 kHz, offering a 24� to 16� beamwidth. This transducer is suitable for IT buyers managing hardware for smaller vessels, such as center consoles, where detailed bottom information in shallow to medium depths is required. With 600 W of power, it supports a maximum depth of 274 meters (900 feet). The bronze housing is intended for installation in fiberglass or wood hulls, and its low-profile design aims to maintain display resolution at speed. The 0� tilted element corrects for hull deadrise between 0� and 7�, ensuring the beam is oriented directly downwards for accurate readings. It includes a Navico Blue 7-Pin Mix-N-Match Cable and features patented Xducer ID� technology.
