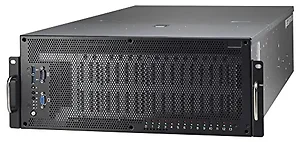

Tyan B7119F77V10E4HR-2T-N System B7119F77V10E4HR-2T-N 4U RM Dual Socket Xeon 10x2.5 inch SATA 4x2.5 inch NVME Brown Box

System
Form Factor: 4U Rackmount
Chassis Model: FA77
Motherboard Name: S7119GMRE Front Panel
Buttons: (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED
LEDs: (1) HDD / (1) ID / (1) Warning / (3) LAN
I/O Ports: (1) VGA port / (2) USB 3.0 ports / (1) COM Port Internal Drive Bay
Qty / Type: (10) 2.5" Hot-Swap SSD/HDD + (4) NVMe
HDD Backplane Support: SAS 12Gb/s /SATA 6Gb/s /NVMe
Supported HDD Interface: (10) SATA 6Gb/s + (4) NVMe System Cooling Configuration
Redundancy: Yes
FAN: (5+1) hot-swap 12cm fans Power Supply<
Type: RPSU
Input Range: AC 100-127V/12A / AC 200-240V/9.48A
Frequency: 47-63 Hz
Output Watts: 3,000 Watts (100-127Vac input) / 4,800Watts (200-240Vac input)
Efficiency: PFC / 80 plus Platinum
Redundancy: 3+1 Processor
>Qty / Socket Type: (2) LGA3647
Supported CPU Series: Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage: Max up to 205W
System Bus: Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Chipset
PCH: Intel C621
Switch IC: (2) PLX PEX8796 Memory
Supported DIMM Qty: (12)+(12) DIMM slots
DIMM Type / Speed: DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666
Capacity: Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS Follow latest Intel DDR4 Memory POR
Memory channel: 6 Channels per CPU
Memory voltage: 1.2V Expansion Slots
PCI-E: (1) PCI-E Gen3 x16 slot (Full-height, Full-length, Single-width) / (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) / (10) PCI-E Gen3 x16 slots (Full-height, Full-length, Double-width) / (1) PCI-E Gen3 x16 storage mezz. slot
Pre-install TYAN Riser Card: (1) M2217-L16-IO riser card for (1) storage mezz. slot
Pre-install TYAN Mezz Card: (1) M7076-X540-2T LAN mezz. card w/ (2) 10GbE ports (deployed on (1) PCI-E Gen3 x16 OCP 2.0 slot) LAN
Qty / Port: (2) 10GbE ports, (1) GbE port dedicated for IPMI
Controller: Intel X540-BT2
PHY: Realtek RTL8211E Storage
SATA
Connector: (2) Mini-SAS HD (8-ports)
Controller: Intel C621
Speed: 6.0 Gb/s
RAID: RAID 0/1/10/5 (Intel RSTe)
sSATA
Connector :(2) SATA-III
Controller: Intel C621
Speed: 6.0 Gb/s
RAID: RAID 0/1/10/5 (Intel RSTe)
NVMe
Connector (OCuLink): (2) SFF-8612 for (4) NVMe ports Graphic
Connector type: D-Sub 15-pin
Resolution: Up to 1920x1200
Chipset: Aspeed AST2500 I/O Ports
USB: (2) USB3.0 ports (at rear) / (2) USB3.0 ports (at front)
COM: (1) DB-9 COM port (at front)
VGA: (1) D-Sub 15-pin port (at front)
RJ-45: (2) 10GbE ports, (1) GbE dedicated for IPMI TPM (Optional)
TPM Support: Please refer to our TPM supported list. System Monitoring
Chipset: Aspeed AST2500
Temperature: Monitors temperature for CPU and memory and system environment
Voltage: Monitors voltage for CPU, memory, chipset and power supply
LED: Over temperature warning indicator / Fan and PSU fail LED indicator
Others: Watchdog timer support Server Management
Onboard Chipset: Onboard Aspeed AST2500
AST2500 iKVM Feature: 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface BIOS
Brand / ROM size: AMI / 32MB
Feature: Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 Operating System
OS supported list: Please refer to our AVL support lists. Regulation
FCC (SDoC): Class A
CE (DoC): Class A
CB/LVD: Yes
RCM: Class A
VCCI: Class A Operating Environment
Operating Temp.: 10^o C - 35^o C (50^o F- 95^o F)
Non-operating Temp.: - 40^o C - 70^o C (-40^o F - 158^o F)
In/Non-operating Humidity 90%, non-condensing at 35^o C
Note: Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed
