Product Overview

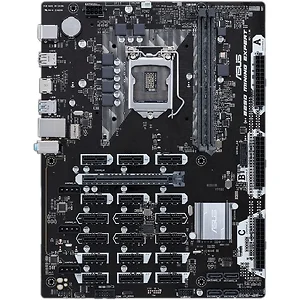

DESIGNED FOR CRYPTO MINING World's First 19-Slot Mining Motherboard Max out your megahash rates! ASUS B250 Mining Expert is the world's first mining motherboard to feature 19 PCI Express (PCIe) slots. With 18 PCIe x1 and one PCIe x16 slots on board, plus three zoned ATX12V power connectors, B250 Mining Expert lets you run up to 19 NVIDIA or AMD GPUs in parallel to max out your megahash rates! Triple-ATX12V Power Delivery Engineered to deliver the power your graphics cards need B250 Mining Expert has been engineered to provide all the power your GPUs demand, cleanly and efficiently. The 19 PCIe slots are grouped into three distinct zones, each powered by its own, dedicated 24-pin ATX12V power connector â reducing wiring complexity and ensuring ample power delivery to all PCIe slots. Voltage-Stabilization Capacitors Stable, low-noise power for your GPUs Stable, low-noise power is a serious benefit for 24/7 cryptocurrency mining. That's why we've engineered B250 Mining Expert with 19 decoupling capacitors. These quality components smooth voltages and reduce high-frequency noise, so your GPUs get the good-quality power delivery needed for reliable operation. PCIe Slot State Detection Easy management and debugging B250 Mining Expert has built-in smarts to show the status of each and every graphics card from the moment you power up. The moment the Power-On, Self-Test (POST) screen appears, you'll see a graphical representation of the status of every slot â so you'll know instantly if there's a problem or whether your mining operation is good to go. Mining Mode BIOS Optimization Simple setup Unlike some rival boards, B250 Mining Expert has a special Mining Mode that's enabled by default, removing the hassle of having to make BIOS-level changes that are necessary to maximize mining performance. Mining Mode sets the PCI Express speed to PCIe 1.0 and disables the Compatibility Support Module, so you get the best stability and compatibility right out of the gate. Best Network Performance Intel Gigabit LAN and ASUS LANGuard B250 Mining Expert is equipped with Intel Gigabit Ethernet for the best throughput and lower CPU overhead, ensuring optimum performance from your mining rig. ASUS-exclusive LANGuard employs advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput â protecting the B250 Mining Expert from lightning strikes and static electricity.
Technical Specifications
CPU
LGA1151 socket for 7th and 6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron Processors
Supports 14nm CPU
Supports Intel Turbo Boost Technology 2.0
(The Intel Turbo Boost Technology 2.0 support depends on the CPU types.) Chipset
Intel B250 Chipset Memory
2 x DIMMs, max.32GB, DDR4 2400/2133 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
(Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.)
(Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz.) Expansion Slots
1 x PCI Express x16 slot (at x16 mode)
18 x PCI Express x1 slots VGA
Integrated Graphics Processor - Intel HD Graphics support
- Supports HDMI with max. resolution 4096x2160 at 24Hz / 2560x1600 at 60Hz
- Maximum shared memory of 1024MB Storage
Intel B250 Chipset: 4 x Serial ATA 6.0 Gb/s connectors (gray) LAN
Intel I219V Gigabit LAN Audio
Realtek ALC887 8-channel high definition audio CODEC
(Choose the chassis with HD audio module in front panel to support 8-channel audio output.) USB
Intel B250 Chipset
- 6 x USB 3.1 Gen 1 ports (2 ports at mid-board, 4 ports at back panel, blue)
- 4 x USB 2.0/1.1 ports (2 ports at mid-board, 2 ports at back panel) ASUS Special Features
ASUS 5X PROTECTION III
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage:
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM: 6 Phase digital power design
Q-Design:
- ASUS Q-DIMM
- ASUS Q-Slot Back Panel I/O Ports
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
1 x LAN (RJ-45) port
3 x Audio jacks support 8-channel audio output Internal I/O Connectors
1 x USB 2.0/1.1 connectors support additional 2 USB 2.0/1.1 ports
1 x USB 3.1 Gen 1 connectors support additional 2 USB 3.1 Gen 1 ports
4 x SATA 6.0Gb/s connectors
1 x CPU Fan connector
1 x Chassis Fan connectors
1 x COM header
1 x Front panel audio connector
1 x S/PDIF Out connector
3 x 24-pin EATX Power connectors
3 x 4-Pin AUXPWR Connectors
1 x 8-pin EATX 12V Power connector
1 x CLRTC
1 x System Panel connector BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE Accessories
2 x Serial ATA 6.0Gb/s cables
1 x I/O shield
1 x Support DVD
1 x Users manual Operating System Support
Windows 10 (64-bit)
Windows 7 (64-bit)
Windows 7 64-bit is only supported when using 6th Generation Intel Processors Form Factor
ATX Form Factor, 12 inch x 9.1 inch (30.5cm x 23.1cm) Item Dimension (L inchxW inchxH inch)
11 x 13 x 3 Weight
3.00 lb Warranty Information
90 Days Warranty
