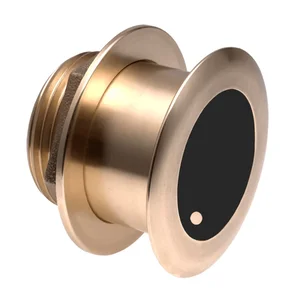

B175C-20-MW-MM - Airmar B175MW Medium Ultra-Wide 20-Degree Transducer

Airmar B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer

Airmar revolutionizes fishing sonar with the B175 Medium Ultra-Wide (MW) Tilted Element� Thru-hull transducer. This advanced design operates at medium frequency (60-100 kHz) and achieves an impressive ultra-wide beamwidth of 57-73� starboard and 16� average fore-aft, ensuring maximum coverage under the boat. It's ideal for anglers targeting pelagic species in the upper water column.

Leveraging this medium frequency transducer alongside other popular models like the B275LHW allows for a comprehensive frequency range for detecting fish targets from shallow to deep.

The B175MW is designed with Airmar�s signature Tilted Element housing, featuring a ceramic element set at a 20�, 12�, or 0� angle. Installation is nearly flush with the hull, allowing the tilted element to compensate for hull deadrise, optimizing vertical orientation of the ceramic element for superior echo returns.

The Airmar B175MW Medium Ultra-Wide 20-Degree Transducer is a 1kW CHIRP thru-hull transducer designed for marine applications. It operates within a medium frequency range of 60-100 kHz, providing a 40 kHz bandwidth. This transducer features an ultra-wide beamwidth, ranging from 57-73� port/starboard and a 16� average fore/aft, which enhances coverage directly beneath the vessel. The B175MW is equipped with a 20� Tilted Element� ceramic, compensating for hull deadrise to optimize echo returns and maintain a near-flush installation. It includes both depth and fast-response water-temperature sensors, with a depth detection capability up to 400 meters (1,300 feet). The durable bronze housing is suitable for various hull types, and its low-profile design aims to maintain signal clarity at speed. This transducer, part number B175C-20-MW-MM, is intended for users requiring broad coverage in the upper water column for pelagic species detection.
