B175C-20-MW-12F - Airmar B175MW 1kW 20° Chirp Thru-Hull Transducer

Airmar B175MW 1kW 20° Chirp Thru-Hull Transducer

The B175MW transducer elevates performance with its medium frequency (60-100 kHz) and ultra-wide beamwidth of 57-73° port-starboard and 16° average fore-aft. Designed for anglers targeting pelagic species in the upper water column, this transducer maximizes coverage beneath the vessel.

Featuring Airmar’s renowned Medium Ultra-Wide design, it provides excellent mid-depth performance and fish-target separation. When paired with other models like the B275LHW, anglers gain a comprehensive frequency range to engage with targets ranging from deep to shallow.

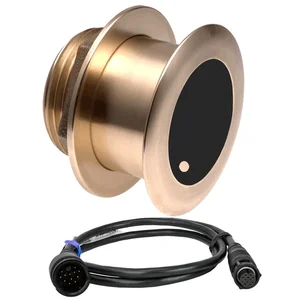

The B175MW Tilted Element Thru-hull is equipped with a 1 kW transducer housed in a popular Tilted Element case, featuring a ceramic element fixed at a 20° angle. Its nearly flush installation ensures optimal orientation of the ceramic element, enhancing echo returns to the transducer.

The Airmar B175MW 1kW 20� Chirp Thru-Hull Transducer is designed for marine professionals and anglers requiring enhanced fishfinding capabilities in the upper water column. This thru-hull transducer operates within a medium frequency range of 60-100 kHz, offering an ultra-wide beamwidth of 57-73� port-starboard and 16� average fore-aft. It is suitable for vessels with hull deadrise between 16� and 24�, utilizing a 20� fixed tilted ceramic element for optimal echo returns. The B175MW provides depth tracking up to 400 meters (1,300 feet) and integrates depth and fast-response water-temperature sensors. Its 1 kW power and 40 kHz bandwidth contribute to effective fish-target separation. The durable bronze housing ensures compatibility with various hull types. This unit, part number B175C-20-MW-12F, connects via a 12-pin connector, specifically designed for Furuno TZTouch3 Displays, addressing the need for comprehensive mid-depth coverage and target identification.
