Condition: New

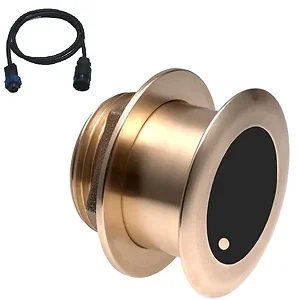

Airmar B175 Wide-Beam Chirp High Frequency 20d Tilted Element with Navico 7-pin Mix and Match Cable
Model: B175C-20-HW-BLGet more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers
A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.
Specifications| Deadrise | 16° to 24° |
| Acoustic Window | Urethane |
| Power rating | 1 kW @ 1% duty cycle |
| Frequency | 150 to 250 kHz-A (Broadband) |
The Airmar B175C-20-HW-BL is a marine transducer designed for depth and fast-response water temperature sensing. This unit is suitable for fiberglass or wood hulls on boats 8 meters (25 feet) and above. It operates within a high-frequency CHIRP range of 150 kHz to 250 kHz, providing 100 kHz of total bandwidth. A key feature is its constant 25� beamwidth across the entire frequency band, which aims to provide broader coverage under the boat compared to transducers with narrower beams. This can assist in detecting fish and bottom structures over a wider area. The transducer has a 1 kW power rating and is intended for integration with CHIRP-ready echosounders, connecting via a Navico 7-pin Mix and Match cable. It is designed for hulls with a deadrise between 16� and 24�.
B175C-20-HW-BL - Airmar B175C-20-HW 20d Tilt With 7-Pin Navico MM Cable
