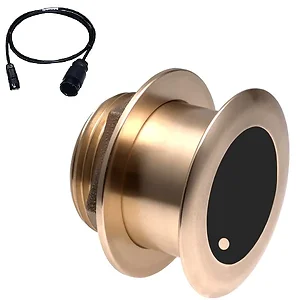

B175C-20-H-HB - Airmar B175C-20-H 20d Tilt With Humminbird 9-Pin MM Cable

Airmar B175 CHIRP High Frequency 20d Tilted Element With Humminbird 9-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• High—CHIRPS from 150 kHz to 210 kHz
• Boat Size: 8 m (25’) and above
• 80 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Hull Type: Fiberglass or wood

The transducer’s ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairing

Flush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer’s active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.

High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feet

• B175C-20-H-MM Transducer
• MMC-HB Mix-N-Match Cable

The Airmar B175C-20-H-HB is a CHIRP-enabled, high-frequency transducer designed for marine applications. This unit integrates a depth and fast-response water-temperature sensor, making it suitable for vessels 8 meters (25 feet) and above. It operates within a CHIRP frequency range of 150 kHz to 210 kHz, offering 80 kHz of total bandwidth. The transducer's ceramic elements are permanently tilted at 20 degrees to compensate for hull deadrise between 16-25 degrees, ensuring the sonar beam is directed straight down for optimal echo returns without requiring a fairing block. It is compatible with fiberglass or wood hulls and mounts flush. With a 1 kW power rating and a maximum depth capability of 1000 feet, this transducer provides detailed imaging in shallower waters, beneficial for anglers seeking crisp, high-resolution displays of small targets. The included Humminbird 9-Pin Mix-N-Match Cable facilitates connectivity.
