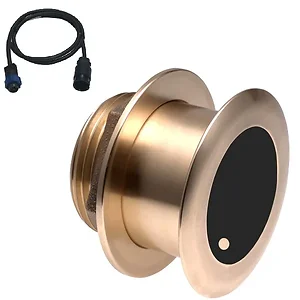

Airmar B175 CHIRP High Frequency 20d Tilted Element With Navico 7-Pin Mix-N-Match Cable
Model: B175C-20-H-BLThe transducer’s ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairing
Flush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer’s active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.
High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feet
Specifications| Deadrise | 16-25° |
| Acoustic Window | Urethane |
| Power rating | 1 kW @ 1% duty cycle |
| Frequency | 130 to 210 kHz-A (Broadband) |
| Beam | 10° to 6° beam |
| Max Depth | 1000ft |
The Airmar B175C-20-H-BL is a CHIRP high-frequency transducer designed for marine applications, suitable for boats 8 meters (25 feet) and above. It integrates depth and fast-response water-temperature sensing capabilities. This unit operates within a CHIRP frequency range of 150 kHz to 210 kHz, offering 80 kHz of total bandwidth. Its high-frequency operation provides greater detail, making it sensitive to smaller targets and suitable for displaying high-resolution images on an echosounder screen, particularly in depths less than 1500 feet. The transducer features a 20-degree tilted ceramic element, permanently angled within the housing to compensate for hull deadrise between 16 and 25 degrees. This design ensures the sonar beam is aimed vertically, maximizing echo returns without requiring a fairing block. It is compatible with fiberglass or wood hull types and connects via a Navico 7-Pin Mix-N-Match cable, making it a practical solution for IT hardware resellers supporting marine electronics.
This transducer is designed for use with fiberglass or wood hull types. It mounts through a drilled hole, with the fitting flush against the exterior hull surface.
The package includes the B175C-20-H-MM Transducer unit and an MMC-BL Mix-N-Match Cable for connection.
The high-frequency range (150 kHz to 210 kHz) is best for shallower water, providing greater detail and sensitivity to small targets. It delivers crisp, high-resolution images on the echosounder screen, ideal for anglers fishing at depths less than 1500 feet.
The transducer's 20-degree tilted element is designed to compensate for hull deadrise angles ranging from 16 to 25 degrees, ensuring the sonar beam is aimed straight down.
B175C-20-H-BL - Airmar B175C-20-H 20d Tilt With Navico 7-Pin MM Cable
