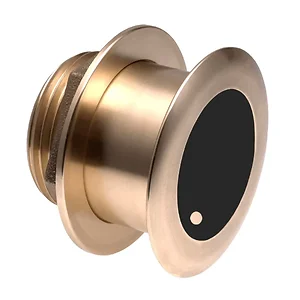

B175C-12-MW-MM - Airmar B175C-12-MW Transducer Medium Wide Beam 12 Deg Tilt

Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element™ Thru-Hull - requires Mix-N-Match Cable

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The Airmar B175C-12-MW-MM is a 1 kW thru-hull transducer designed for marine applications, providing depth and fast-response water temperature data. It operates on a medium frequency band of 60-100 kHz, offering 40 kHz of total bandwidth. This transducer features a fixed 12-degree tilted element, suitable for hulls with a deadrise between 8 and 15 degrees, and is housed in bronze for compatibility with fiberglass or wood hulls. Its medium frequency and ultra-wide beamwidth (57-73 degrees port/starboard, 16 degrees average fore/aft) are intended for users tracking pelagic species in the upper water column or seeking deeper species. The unit supports depth tracking down to 400 meters (1,300 feet) and includes Xducer ID technology. It requires a Mix-N-Match cable, which is not included. This model is appropriate for vessels up to 11 meters (36 feet) in length.
