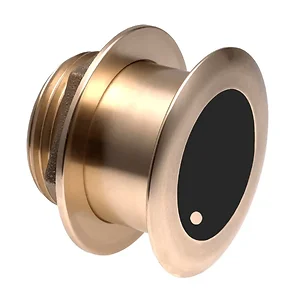

B175C-12-MW-8G - Airmar B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Garmin 8-Pin MMC

Airmar B175MW Medium Ultra-Wide 12 deg Tilted Element™ Thru-Hull - Garmin 8-Pin Mix-n-Match Cable

• Fixed 12° tilted version for 8° to 15° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

• B175C-12-MW-MM Medium Ultra-Wide Chirp, 1kW, 12° Tilt
• MMC-8G Garmin 8-Pin Mix-n-Match Cable

The Airmar B175C-12-MW-8G is a 1 kW thru-hull transducer designed for marine applications, providing depth and water temperature data. This unit features a fixed 12� tilted element, suitable for hulls with a deadrise between 8� and 15�. It operates on a medium frequency range of 60-100 kHz, offering 40 kHz of total bandwidth. The transducer delivers an ultra-wide beamwidth of 57� to 73� port/starboard and 16� average fore/aft, which can be beneficial for target separation in the upper water column. With a maximum depth tracking capability of 400 meters (1,300 feet), it is intended for vessels up to 11 meters (36 feet) in length. The bronze housing is compatible with fiberglass or wood hulls, and its low-profile design aims to maintain resolution at speed. This model includes an 8-pin Mix-n-Match cable for Garmin systems.
