B175C-0-MW-HB - Airmar B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide with Humminbird 9-Pin MMC

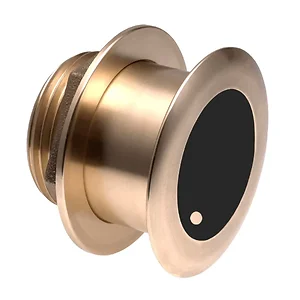

Airmar B175MW Medium Ultra-Wide 0 deg Tilted Element™ Thru-Hull - with Humminbird 9-Pin Mix-n-Match Cable

• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

• MMC-HB 9-Pin Humminbird Mix-n-Match Cable
• B175C-0-MW-MM 0d Tilt Medium CHIRP Ultra Wide

The Airmar B175C-0-MW-HB is a 1 kW thru-hull transducer designed for marine applications, providing depth and fast-response water temperature sensing. This model features a fixed 0-degree tilted element, suitable for hulls with a deadrise between 0 and 7 degrees. It operates at a medium frequency range of 60-100 kHz, offering 40 kHz of total bandwidth. The transducer's ultra-wide beamwidth, ranging from 57 to 73 degrees port/starboard and 16 degrees average fore/aft, enhances coverage for targeting pelagic species in the upper water column and deeper species. With a maximum depth tracking of 400 meters (1,300 feet), it is suitable for vessels up to 11 meters (36 feet) in length. The bronze housing is designed for fiberglass or wood hulls, including stepped, planing, or displacement types. It includes a Humminbird 9-Pin Mix-n-Match cable for connectivity.
