B175C-0-MW-11R - Airmar B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide with Raymarine -Pin MMC

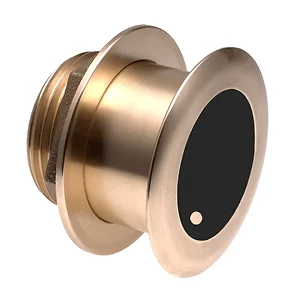

Airmar B175MW Medium Ultra-Wide 0 deg Tilted Element™ Thru-Hull - with Raymarine 12-Pin Mix-n-Match Cable

• Fixed 0° tilted version for 0° to 7° hull deadrise
• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300#39;)
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Bronze housing for use on stepped, planing or displacement hull
• Low-profile, thru-hull housing yields good resolution at speed when installed properly
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

• MMC-12RHM-Pin Raymarine Mix-n-Match Cable
• B175C-0-MW-MM 0d Tilt Medium CHIRP Ultra Wide

The Airmar B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide Thru-Hull transducer is designed for marine applications requiring depth and water temperature sensing. This unit, part number B175C-0-MW-11R, features a fixed 0-degree tilted element, suitable for hulls with 0 to 7 degrees of deadrise. It operates at a medium frequency range of 60-100 kHz, providing a broad beamwidth of 57 to 73 degrees port/starboard and 16 degrees average fore/aft. This configuration is intended to offer extensive coverage in the upper water column, which can be beneficial for targeting pelagic species. With a 1 kW power rating, it can track depth down to 400 meters (1,300 feet). The bronze housing makes it compatible with fiberglass or wood hulls up to 11 meters (36 feet) in length. It includes a Raymarine 12-Pin Mix-n-Match Cable for connectivity.
