B175C-0-HW-12G - Airmar B175C-0-HW 0d Tilt High CHIRP Ultra Wide Beam With Garmin 12-Pin MM Cable

Airmar B175 Wide-Beam CHIRP High Frequency 0d Tilted Element W, Garmin 12-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• High—CHIRPS from 150 kHz to 250 kHz
• 25° constant beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Hull Type: Fiberglass or wood
• Boat Size: 8 m (25’) and above

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

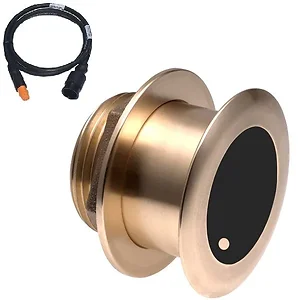

• B175C-0-HW-MM Transducer
• MMC-12G Mix and Match Cable

The Airmar B175C-0-HW-12G is a high-frequency CHIRP transducer designed for marine applications, specifically for fiberglass or wood hulls on boats 8 meters (25 feet) and above. This unit provides depth and fast-response water temperature sensing. It operates within a CHIRP frequency range of 150 kHz to 250 kHz, offering 100 kHz of total bandwidth. A key feature is its constant 25� beamwidth across the entire frequency band, which aims to deliver broader coverage under the boat compared to transducers with narrower beams. This can be beneficial for IT and marine professionals managing vessel systems where enhanced bottom coverage and fish detection in the upper water column are required. The transducer is rated for 1 kW at 1% duty cycle and includes a Garmin 12-pin Mix-N-Match cable for connectivity. It is suitable for integrating with CHIRP-ready echosounders to improve display returns.
