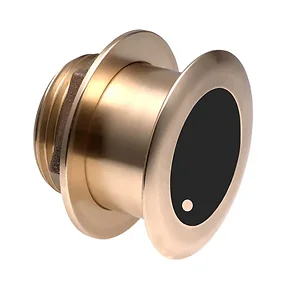

B175C-0-HW-0 - Airmar B175C-0-HW 0d Tilt High CHIRP Ultra Wide Beam With No Connector MM Cable

Airmar B175 Wide-Beam CHIRP High Frequency 0d Tilted Element W, Bare Wire Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• High—CHIRPS from 150 kHz to 250 kHz
• 25° constant beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Hull Type: Fiberglass or wood
• Boat Size: 8 m (25’) and above

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers

A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

• B175C-0-HW-MM Transducer
• MMC-0 Mix and Match Cable

The Airmar B175C-0-HW-0 is a high-frequency, wide-beam CHIRP transducer designed for marine depth and temperature sensing applications. It operates within a frequency range of 150 kHz to 250 kHz, providing 100 kHz of total bandwidth. This transducer offers a constant 25� beamwidth across its entire frequency band, which can enhance bottom coverage and fish detection compared to narrower beam alternatives. It includes a depth and fast-response water-temperature sensor. The unit is suitable for fiberglass or wood hulls with a deadrise between 0� and 7�, and is recommended for boats 8 meters (25 feet) and above. The B175C-0-HW-0 is supplied with a bare wire Mix-N-Match cable, allowing for integration with compatible echosounders.
