B175C-0-H-14HB - Airmar B175C-0-H 0d Tilt w/ Humminbird 14-Pin MM Cabl

Airmar B175 CHIRP High Frequency 0d Tilted Element With Humminbird 14-Pin Mix-N-Match Cable

• Depth & fast-response water-temperature sensor
• High—CHIRPS from 150 kHz to 210 kHz
• Boat Size: 8 m (25’) and above
• 80 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Hull Type: Fiberglass or wood

The transducer’s ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairing

Flush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer’s active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.

High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feet

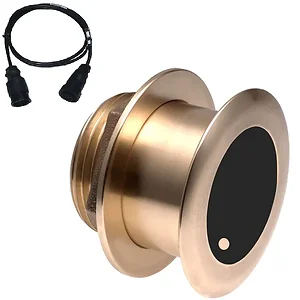

• B175C-0-H-MM Transducer
• MMC-14HB Mix and Match Cable

The Airmar B175C-0-H-14HB is a CHIRP high-frequency transducer designed for marine applications, specifically for boats 8 meters (25 feet) and above. This unit integrates a depth and fast-response water-temperature sensor. It operates across a high CHIRP frequency range of 150 kHz to 210 kHz, providing 80 kHz of total bandwidth. This frequency range is suitable for detailed imaging, particularly in shallower water, and covers the popular 200 kHz fishing frequency. The transducer is engineered for flush mounting through a drilled hole in fiberglass or wood hulls, with its ceramic elements permanently tilted to compensate for hull deadrise between 0� and 7�. This design ensures the sonar beam is aimed directly downwards, optimizing echo returns without requiring a fairing block. It is rated for 1 kW power and has a maximum depth capability of 1000 feet, making it appropriate for anglers and marine professionals requiring high-resolution data in depths less than 1500 feet.
