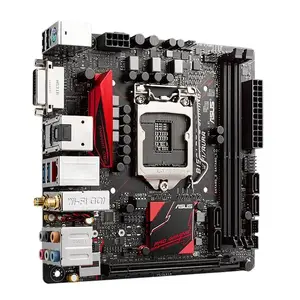

B150I PRO GAMING/WIFI/AURA - Asus LGA1151/ Intel B150/ DDR4/ SATA3&USB3.0/ M.2/ WiFi/ A&GbE/ Mini-ITX Motherboard

�  LGA1151 socket for 6th-genereation Intel� Core� i7 / Core i5 / Core i3, Pentium� and Celeron processors
�  Dual-channel DDR4 2133 support
�  SupremeFX: Flawless audio that makes you part of the game
�  Sonic Radar ll: Scan and detect your enemies to dominate
�  Intel Gigabit Ethernet and LANGuard: Top-speed protected networking
�  RAMCache: Speed up your game loads
�  Gamer's Guardian: Highly-durable components and smart DIY features
�  2x2 Wi-Fi with MU-MIMO and M.2: Ultra-speedy transfers for faster gaming

CPU
Intel Socket 1151 for 6th Generation Core^TM i7/Core^TM i5/Core^TM i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
(The Intel Turbo Boost Technology 2.0 support depends on the CPU types.)

Chipset
Intel B150

Memory
2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
(Hyper DIMM support is subject to the physical characteristics of individual CPUs.)

Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru^TM 3D, Quick Sync Video, Clear Video HD Technology, Insider^TM

Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)

Storage
Intel B150 chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA and PCIE mode)( For a 2242 storage device, use the bundled 2242 mounting kit.)
4 x SATA 6Gb/s port(s),

LAN
Intel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard

Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz

Bluetooth
Bluetooth V4.1

Audio
SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 112 dB SNR stereo playback output

Audio Feature
- SupremeFX Shielding^TM Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

USB Ports
Intel B150 chipset :
5 x USB 3.0/2.0 port(s) (3 at back panel, blue, 2 at mid-board)
Intel B150 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)

Special Features
Gamers Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
Remote Entertainment
- Media Streamer
- HyStream
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
RAMCache
AURA: RGB Lighting Control

Operating System Support
Windows 10 , 64bit
Windows 8.1 , 64bit
Windows 7 , 32bit/64bit

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x HDMI
1 x LAN (RJ45) port(s)
3 x USB 3.0 Type-A + Type-C
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Internal I/O Ports
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x TPM header
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x Clear CMOS jumper(s)
1 x Water Pump header (4-pin)
1 x 14-1 pin TPM connector

Accessories
Users manual
ASUS Q-Shield
M.2 2242 mounting kit
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x pack of cable tie
1 x CPU installation tool
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )

Item Dimension (L inchxW inchxH inch)
9 x 8 x 4

Weight
2.43lb

Warranty Information
3 Year Warranty
