Product Overview

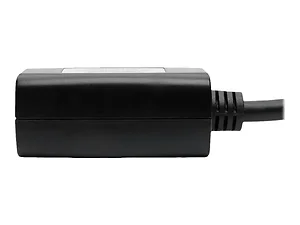

The B126-1P0 is a passive extender remote unit for the B126-002 (2-Port) and B126-004 (4-Port) HDMI Over Cat5 Extender/Splitter local units. When using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N202-Series), a HDMI signal can be extended up to 100 ft. at 1080i (60Hz); or, up to 50 ft. at 1080p (60Hz). The built-in HDMI male connector plugs directly into a monitor without the need for an additional cable. When used with a B126-002 or B126-004, both stereo audio and 7.1 channel surround sound audio are supported, as well as HDCP protected content. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty. Key Features Passive extender remote unit for the B126-002 (2-Port) and B126-004 (4-Port) Extender/Splitter local units Extends a HDMI signal up to 100 ft. at 1080i (60Hz); or, up to 50 ft. at 1080p (60Hz) when using 24Awg, Solid Wire Cat5e/6 cable (Tripp Lite N202-Series) Built-in HDMI male connector plugs directly into a monitor without the need for an additional cable When used with a B126-002 or B126-004, both stereo audio and 7.1 channel surround sound audio are supported, as well as HDCP protected content Compatible with all operating systems Plug and play; No drivers or external power required Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases 1 year limited warranty Package Includes B126-1P0 HDMI Over Cat5 Passive Extender Remote Unit Owner's manual
