Product Overview

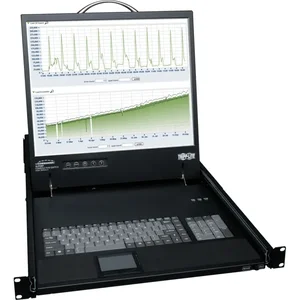

General InformationTripp Lite's B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers.The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 ft. away from the switch. You can switch easily between the 8 ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19" LCD screen supports video resolutions up to 1366 x 768.Add a Tripp Lite B051-000 IP Remote Access Unit and you'll be able to connect to your servers from anywhere in the world. The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Technical InformationKVM Switch: NoNumber of Computers Supported: 16Daisy Chain: YesDevice Type: LCD Rack ConsoleDisplay & GraphicsScreen Size: 19"Display Screen Type: LCDScreen Mode: WXGAScreen Resolution: 1366 x 768Input DevicesPointing Device Type: TouchPadInterfaces/PortsPS/2 Port: YesNumber of PS/2 Ports: 2Physical CharacteristicsColor: BlackHeight: 1.7"Width: 19"Depth: 26.8"Weight (Approximate): 36 lbMiscellaneousPackage Contents: NetCommander B070-016-19 Rackmount LCD with KVM SwitchPower CordSerial Firmware Upgrade CableKVM/Console Jumper CableOwners Manual CDCertifications & Standards: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1Environmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 1 Year
