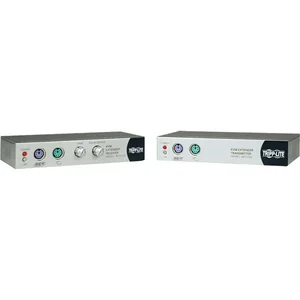

B013330 - Tripp Lite KVM Console Extender VGA over cat5 UTP for USB & PS/2 device

Manage a PS/2 or USB computer/KVM switch from a remote location up to 330ft (100m) away

• UPC Code: 037332143419
• Accessory Type: Extender Kit
• Technology: PS/2; VGA/SVGA
• Accessory Class: KVM Switch Accessories
• Product Overview: Cat5e KVM Console Extender Kit
• Max Supported Video Resolution: 1600 x 1200 @60Hz
• HDR Support: No
• AC Power Adapter Plug(s): NEMA 1-15P North America
• AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60Hz / 1A
• AC Power Adapter Output Specs (V / A): 9V / 1.33A
• AC Power Adapter Cord Length (ft.): 5
• AC Power Adapter Cord Length (m): 1.5
• Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
• Power Source Type: AC Adapter
• Power Over Cable (PoC) Support: No
• DC Barrel Plug: OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
• Power Consumption (Watts): 3.5
• LED Indicators: Red (Power); Green (Link)
• Color: Silver
• Material of Construction: Steel
• Rackmountable: No
• Receiver Unit Dimensions (hwd / in.): 1 x 5.2 x 2.6
• Receiver Unit Weight (lbs.): 1.3
• Shipping Dimensions (hwd / in.): 5.40 x 6.90 x 8.00
• Shipping Weight (lbs.): 2.60
• Transmitter Unit Dimensions (hwd / in.): 1 x 5.2 x 2.6
• Transmitter Unit Weight (lbs.): 1.3
• Unit Packaging Type: Box
• Operating Temperature Range: 32r to 104rF (0r to 40rC)
• Storage Temperature Range: -4r to 140rF (-20r to 60rC)
• Relative Humidity: 0%-90% RH, Non-Condensing
• BTUs: 11.9 BTU/Hr
• IR Remote Extension Support: No
• RS-232 Serial Extension Support: No
• USB Extension Support: No
• Number of Ports: 1
• Side A - Connector 1: (2) HD15 (FEMALE)
• Side A - Connector 2: RJ45 (FEMALE)
• Side A - Connector 3: USB B (FEMALE)
• Side A - Connector 4: (2) MINI DIN-6 (FEMALE)
• Side B - Connector 1: HD15 (FEMALE)
• Side B - Connector 2: RJ45 (FEMALE)
• Side B - Connector 3: (2) MINI DIN-6 (FEMALE)
• Computer Keyboard and Mouse Interface: PS/2; USB
• Computer Monitor Interface: VGA
• Console Keyboard and Mouse Interface: PS/2
• Console Monitor Interface: VGA
• Connector Plating: Nickel
• Recommended Category Cable: Cat5/Cat5e Cables
• External Power Supply Certifications: FCC; UL; cUL; TUV; CB
• Product Compliance: RoHS; CE (Europe); REACH; FCC (USA)
• Product Warranty Period (Worldwide): 3-year limited warranty
