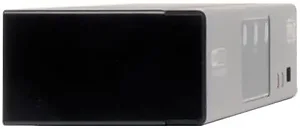

Control two computers with Dual Head DVI Video Cards via a single set of Keyboard, Mouse, and Dual Displays
- UPC Code: 037332180322
- Max CPU: 2
- Technology: USB 2.0 (High Speed); DVI; Stereo Audio
- Max Supported Video Resolution: 2560 X 1600 @60Hz (DIGITAL), 2048 X 1536 @60Hz (ANALOG)
- AC Power Adapter Plug(s): NEMA 1-15P North America
- AC Power Adapter Input Specs (V / Hz / A): 100-240V / 50/60Hz / 0.5A
- AC Power Adapter Output Specs (V / A): 5.3V / 2.4A
- AC Power Adapter Cord Length (ft.): 5
- AC Power Adapter Cord Length (m): 1.5
- Voltage Compatibility (VAC): 100; 110; 120; 127; 200; 208; 220; 230; 240
- Power Source Type: AC Adapter
- LED Indicators: (x2) KVM (Orange), (x2) Audio (Green), (x2) USB (Green), (x3) Mode (1 Orange, 2 Green)
- Color: Black
- Cable Jacket Color: Black
- Shipping Dimensions (hwd / in.): 4.00 x 12.75 x 8.50
- Shipping Weight (lbs.): 5.10
- Unit Dimensions (hwd / in.): 1.750 x 10.250 x 3.000
- Unit Weight (lbs.): 1.23
- Storage Temperature Range: -4r to 140rF (-20r to 60rC)
- Relative Humidity: 0 to 80% RH, Non-Condensing
- Operating Temperature: 32 to 122 F (0 to 50 C)
- BTUs: 68.42
- Port Control: Push Buttons, Hotkeys, OSD Mouse Switching
- IP Remote Access: No
- Number of Ports: 2
- PC/Server Connections: DVI; USB
- Side A - Connector 1: (4) DVI-I DUAL LINK (FEMALE)
- Side A - Connector 2: (2) USB B (FEMALE)
- Side A - Connector 3: (4) 3.5MM (FEMALE)
- Side B - Connector 1: (2) DVI-I DUAL LINK (FEMALE)
- Side B - Connector 2: (4) USB A (FEMALE)
- Side B - Connector 3: (4) 3.5MM (FEMALE)
- Side B - Connector 4: (1) RJ45 (FEMALE)
- Computer Keyboard and Mouse Interface: USB
- Computer Monitor Interface: DVI-I Dual-Link
- Daisy-chainable or Cascadable: Daisychainable
- NIAP-Certified Secure: No
- Number of Users: 1
- Autoscan (Y,N): Y
- Autoscan Duration: 1-99 Seconds
- External Power Supply Certifications: FCC; PSE; TUV; UL; cUL
- Product Compliance: RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA)
- Product Warranty Period (Worldwide)3-year limited warranty
