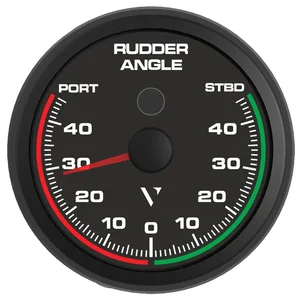

85MM Rudder Angle Indicator with NMEA 0183 Compatibility
This professional-grade 85MM rudder angle indicator is expertly designed for marine applications, equipped with an NMEA 0183 transceiver for seamless integration with most commercial autopilots. Its large, easy-to-read 270° dial scale features striking red illumination, ensuring visibility and accuracy under various conditions.
Engineered for resilience, this indicator operates reliably in harsh environments, with a wide temperature range from -30°C to +80°C and an IPX7 protection rating. It accommodates both 12V and 24V systems and supports analogue rudder sensors ranging from 3-180 Ohm and 0-5V. Additionally, it can transmit rudder angle data via NMEA 0183 to secondary gauges connected in series.
Featuring an embedded infrared pushbutton, users can easily fine-tune the calibration settings to their preferences.
Included in the Box:
*Sold as an individual item.
This product is non-returnable to the original point of purchase. Please contact the manufacturer for support.The Veratron 85MM Rudder Angle Indicator, part number B00067401, is a marine-grade instrument designed for precise rudder position monitoring. It integrates with NMEA 0183 systems, making it suitable for vessels utilizing commercial autopilots. This indicator provides a clear, 270� dial scale with red illumination, ensuring visibility in varied lighting conditions. Engineered to operate in harsh marine environments, it features an IPX7 protection rating and functions across a wide temperature range of -30�C to +80�C. It supports both 12V and 24V electrical systems and is compatible with analogue rudder sensors ranging from 3-180 Ohm and 0-5V. The unit can also transmit rudder angle data via NMEA 0183 to other gauges in a series. Calibration adjustments are managed through an embedded infrared pushbutton, allowing for user-specific fine-tuning. This device is intended for IT and marine professionals requiring reliable rudder angle feedback and NMEA 0183 data transmission.
This rudder angle indicator is equipped with an NMEA 0183 transceiver for integration with compatible systems, including most commercial autopilots.
The box includes the gauge, a wire harness, a mounting spinlock, and safety instructions. It is sold as an individual item.
The indicator accommodates analogue rudder sensors with resistance ranges from 3-180 Ohm and voltage outputs from 0-5V.
The Veratron 85MM Rudder Angle Indicator operates reliably across a wide voltage range from 8 to 32V, supporting both 12V and 24V systems.
B00067401 - Veratron 85MM Rudder Angle Indicator for NMEA 0183 (Red Illumination)
