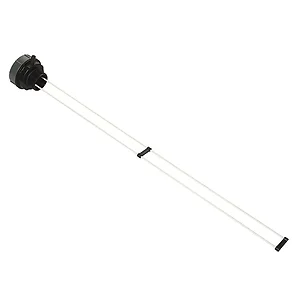

Veratron NMEA 2000 Liquid Level Sensor for Tanks 1200-1500mm
This advanced NMEA 2000® Liquid Level Sensor is designed to enhance fluid level monitoring with its industry-first certification for drinking water. The sensor integrates seamlessly into an NMEA 2000 network, accommodating a diverse range of tank depths from 1200 mm to 1500 mm.
The innovative capacitive technology enables easy switching between fresh and wastewater applications, while allowing for micro-adjustments tailored to specific tank sizes. Unlike traditional reed technology, which operates in fixed increments, this sensor provides linear measurements across the entire range, offering precise data for effective refilling and discharging decisions across up to four tanks.
The installation is straightforward; the sensor connects directly to the NMEA 2000 backbone through its integrated Micro-C M12 5-pin connector, providing the necessary 12V power and facilitating tank level monitoring from any compatible display in the network.
Moreover, this sensor meets UL94, CE, REACH, and RoHS standards and features an IPX9K rating for robust protection as an exposed device.
Veratron B00041501 NMEA 2000 Liquid Level Sensor for Tanks 1200-1500mm
