Azden-310LT UHF Wireless Lavalier Microphone System

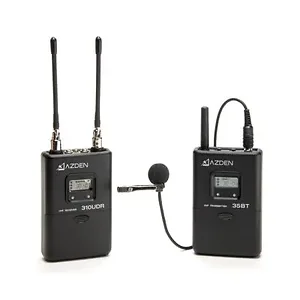

The Azden 310LT UHF Wireless Lavalier Microphone System is a versatile and cost-effective solution ideal for both amateur and professional video applications. This complete system includes the 35BT body-pack transmitter, the EX-503L lavalier microphone, and the 310UDR camera-mount diversity receiver. Key features include 188 user-selectable UHF frequencies, high-gain pivoting antennas, and an LCD digital display, ensuring reliable performance in diverse settings.

310UDR Receiver Features:

• Frequency Range: UHF 188 Frequencies (566.125-589.875MHz)
• Type of Reception: FM
• Oscillator: PLL Synthesized
• RF Squelch Level: -95dBm
• Frequency Response: 50Hz – 15kHz
• S/N Ratio: >84dB at 100% Deviation
• Output Impedance: 1k Ohms
• Audio Out: MIC Level – Balanced – 3.5mm Mini-Jack
• Batteries: 2 AA Alkaline or 2 AA rechargeable Ni-MH

35BT Transmitter Features:

• Frequency Range: UHF 188 Selectable Frequencies (566.125-589.875MHz)
• Oscillator: PLL Synthesized
• RF Power: 25mW
• Frequency Response: 50Hz – 15kHz
• Max. Deviation: ±40kHz @ 1kHz Modulation
• Batteries: 2 AA Alkaline or 2 AA rechargeable Ni-MH
