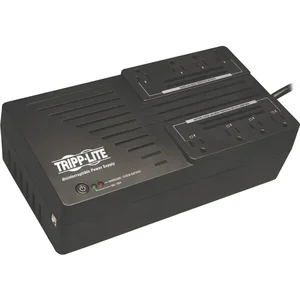

Tripp Lite AVR650UM UPS 650VA 325W Desktop Battery Back Up AVR Compact 120V USB Muted Alarm - 650 VA-325 W - Wall-Deskto
Out of Stock
Condition: New
$109.19$147.41
AUTHORIZED
Free Shipping for this Item
Product Overview
General InformationTripp Lite's AVR650UM Ultra-Compact Line Interactive UPS offers complete power protection for desktop PCs, network workstations and a wide variety of professional and consumer electronic devices. Uninterruptible Power Supply / UPS circuits switch to battery backup mode within milliseconds to keep connected equipment running without interruption or data loss during power failures. Automatic Voltage Regulation / AVR power conditioning maintains smooth, continuous operation of connected equipment during brownouts and overvoltages. Surge-only outlets offer convenient protection for printers and other desktop accessories not requiring battery support. AC and dataline surge suppression prevents connected equipment damage. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.Technical InformationPlug/Connector Type: NEMA 5-15PReceptacles: 8 x NEMA 5-15RDataline Protection: RJ-11Protection Type: BrownoutProtection Type: Over VoltageProtection Type: Black OutProtection Type: SurgeProtection Type: EMI / RFICord Length: 6 ftPower DescriptionLoad Capacity: 650 VA/325 WInput Voltage: 115 V ACInput Voltage: 120 V ACOutput Voltage: 115 V ACInput Current: 12 AWaveform Type: Pulse-width Modulated Sine WaveSurge Energy Rating: 316 JManagementAlarm: Power FailureAlarm: OverloadControls/IndicatorsStatus Indicators: LED IndicatorsInterfaces/PortsModem (RJ-11): YesUSB: YesBattery InformationBackup/Run Time (Full Load): 2.50 MinuteBackup/Run Time (Half Load): 11 MinuteTypical Battery Recharge Time: 12 HourHot Swappable: YesEnvironmental ConditionsMaximum Operating Temperature: 104F (40C)Physical CharacteristicsHeight: 3.5"Width: 11.3"Depth: 6"Form Factor: Wall/Desktop/Floor MountableWeight (Approximate): 11 lbMiscellaneousPackage Contents: AVR AVR650UM 650VA Wall/Desktop/Floor Mountable UPSUSB CableInstruction ManualCertifications & Standards: UL1778CSANOMFCC Part 15 Class BEMIEnvironmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 3 Year
Technical Specifications
OUTPUT Output Volt Amp Capacity (VA) 650 Output Watt Capacity (Watts) 325 Nominal Output Voltage(s) Supported 110V 115V 120V Nominal Voltage Details 115v nominal output in battery mode Frequency Compatibility 60 Hz Output Voltage Regulation (Line Mode) +8%, -21% Output Voltage Regulation (Battery Mode) 115V (+/- 5%) Output Receptacles (8) 5-15R UPS Output Receptacles (Surge Suppression Only) 4 UPS outlets, 4 surge-only outlets Hot-Swap PDU options PDUB15 (2U / 8 5-15R outlets) Output AC Waveform (AC Mode) Sine wave Output AC Waveform (Battery Mode) PWM sine wave Individually Controllable Load Banks No INPUT Rated input current (Maximum Load) 12A Nominal Input Voltage(s) Supported 120V AC UPS Input Connection Type 5-15P Right-Angled UPS Input Cord Length (ft.) 6 UPS Input Cord Length (m) 1.8 Recommended Electrical Service 15A 120V Input Phase Single-Phase BATTERY Half Load Runtime (min.) 10 min. (162.5w) DC System Voltage (VDC) 12 Battery Recharge Rate (Included Batteries) 12 hours (10% to 90%) Battery Access Battery access door Battery Replacement Description Hot-swappable, user replaceable batteries Expandable Runtime No VOLTAGE REGULATION Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 Overvoltage Correction Input voltages between 128 and 147 are reduced by 12% Undervoltage Correction Input voltages between 83 and 104 are boosted by 14% USER INTERFACE, ALERTS and CONTROLS Switches Combination switch controls on/off power status and self-test operation Audible Alarm Alarm is factory muted for silent operation Audible alarm can be restored to indicate power failure and overload conditions using PowerAlert UPS management software LED Indicators 2 LEDs indicate power status and overload/check battery status SURGE / NOISE SUPPRESSION UPS AC Suppression Joule Rating 420
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
Country of Origin:
Tripp Lite
AVR650UM
B00NWRMI7G
037332211460
New
12 lbs
9 X 5 X 14
Mar 07, 2026
Mar 03, 2022
China
Product Identifiers:
Brand: Tripp Lite •
Part #: AVR650UM • UPC: 037332211460 • ASIN: B00NWRMI7G • Category: UPS Batteries
Tripp Lite AVR650UM UPS 650VA 325W Desktop Battery Back Up AVR Compact 120V USB Muted Alarm - 650 VA-325 W - Wall-Deskto
