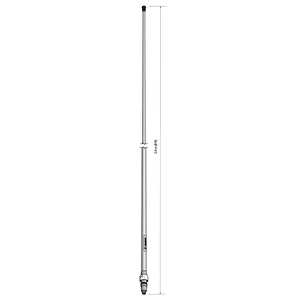

Comrod 21824 AV2458P8 Dual Band WiFi Antenna 8' 2.4 & 5 GHz

Comrod AV2458P8 8' Dual Band WiFi Antenna 2.4 & 5 GHz (cable sold separately)

The AV2458P8 from Comrod is an advanced dual-band omni-directional antenna designed for WLAN applications. With a high placement of the radiating element, it ensures maximum performance by avoiding obstacles. Engineered for durability and aesthetic appeal, this antenna is suitable for installation on various vessels.

Electrical Specifications:

• Frequency Range: 2.4 - 2.5 GHz / 4.9 - 5.8 GHz
• VSWR: 1.7 nominal (maximum 2.2)
• Impedance: 50 ohm
• Power Rating: 5W
• Gain: 3 dBi nominal (2.4 - 2.5 GHz) / 1 dBi nominal (4.9 - 5.8 GHz)
• Polarization: Vertical
• Connector: N female

Mechanical Specifications:

• Design: Dipole design with radiating elements enclosed in polyurethane foam within a fiberglass tube
• Height: 8' (2.4M)
• Weight: 0.9 kg
• Wind Rating: 55 m/s (125 mph)
• Finish: Polyurethane lacquer, white
• Operating Temperature: -40°C to +50°C (-40°F to +122°F)
• Includes P Adapter for cable side feed

For optimal performance, it is recommended to use low loss cable such as LMR-400 for WiFi connections.
