Product Overview

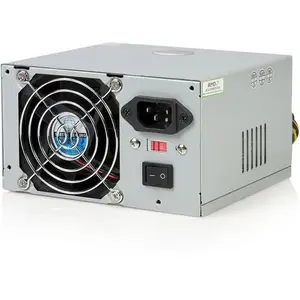

General InformationThis high quality 350 Watt ATX12V 2.01 power supply offers a reliable PC power solution, with support for modern dual-core CPU designs as well as PCI Express and SATA device connections.Compliant with ATX12V 2.01 revision standards, the power supply offers dual 12V power rails, and ensures broad compatibility with a 20/24 pin motherboard connection.Designed to provide dependable, long-lasting power to your hard working AMD or Intel CPU based system, the 350 Watt PSU is backed by StarTech.com's 2 year warranty and free lifetime technical support.Technical InformationSpecification Compliance: ATX12VNumber of Fans: 1Protection Type: Over VoltageProtection Type: Over PowerProtection Type: Short CircuitProtection Type: No LoadReliabilityMTBF: 100000 HourPower DescriptionInput Voltage: 230 V ACInput Voltage Range: 115 V AC to 230 V ACOutput Power: 350 WInterfaces/PortsReceptacles: 2 x 4-pin SP4 Floppy DriveReceptacles: 4 x 4-pin LP4 Peripheral DeviceReceptacles: 1 x 6-pin PCI-EReceptacles: 2 x Serial ATAReceptacles: 1 x 4-pin ATX12VReceptacles: 1 x 24-pin ATX MotherboardPhysical CharacteristicsHeight: 3.3"Width: 5.9"Depth: 5.5"Weight (Approximate): 3.75 lbMiscellaneousAdditional Information: Dual 12V rails are designed for demanding componentsHeavy-duty transformer designed to support high performance systems with several drivesSmart fan adjusts speed to provide quieter operation while maintaining optimum coolingAir Flow Rate: 32.3 CFMNoise Level: 27.4 dBaCompatibility: Intel Pentium processors, including Pentium 4, recommended by AMD.Certifications & Standards: Safety Standards Europe: CETUVSafety Standards International: CBULSafety Standards North America: CSAFCCEnvironmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 2 Year
Technical Specifications
Features ATX12V version 2.01 compliant EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components High flow fan provides efficient cooling for the system and the power supply High quality connectors provide minimal resistance and enhanced electric conductivity Industrys leading safety approval ratings Our power supplies are compatible with all leading processors including Pentium 4 PCI Express Connector for next generation video cards Quad Protection: Short Circuit Protection, Over Power Protection, Over Voltage Protection and No Load Protection Rear power cut off switch Sleeve Bearing provides increased reliability, air flow and longer life Technical Specifications Air Flow Rate : 32.3 Connector Types : 1 - Split 24/20 pin ATX Motherboard Connector Types : 4 - LP4 Female Large Internal Power Connector Types : 2 - SATA Power Female Connector Types : 2 - SP4 Female Small Internal Power Fan Bearing Type : Sleeve Bearing Input Voltage : 115 - 230 Input Voltage Frequency : 50-60 Hz
