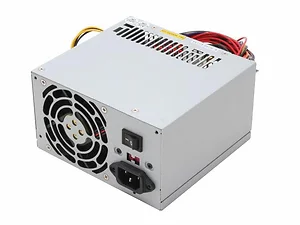

Sparkle Power ATX-400PA Sparkle ATX-400PA 400W Power Supply with SATA Support

Out of Stock
Condition: New

$86.86  $117.26
 Free Shipping for this Item

Product Overview

The Sparkle ATX-400PA is a reliable 400W power supply designed for optimal performance in your PC build. It complies with the ATX12V 2.0 standard and features a range of protections to ensure safety and efficiency. This power supply integrates a quiet cooling system and a variety of connectors to support modern components including SATA drives.

Technical Specifications

Specifications
  • Complies with ATX12V 2.0 standard
  • High efficiency and reliability
  • Remote On/Off function
  • Includes internal 12V DC fan
  • Noise Killer with thermal fan speed control
  • Low noise and ripple
  • Meets FCC part 15 subpart J Class B and CISPR 22 Class B
  • Over voltage, short circuit, and over current protection
  • 100% Hi-pot, ATE, and burn-in tested
  • Re-settable power shutdown feature
  • Meets UL 60950, IEC 60950, and TUV EN60950 standards
  • Input:
    • Input Range: ±10% of 115Vrms/57~63Hz, ±10% of 230Vrms/47~53Hz
    • Input Current: 10A (RMS) at 115Vrms/60Hz, 5A (RMS) at 230Vrms/50Hz
    • Inrush Current: Up to 120A cold start, 150A warm at 115Vrms/60Hz
  • Output:
    • Total Output: 400W
    • +3.3V and +5V combined output not to exceed 150W
    • +3.3V maximum load 22A with +5V at 11.4A; +5V maximum load 22A with +3.3V at 6A
    • +12V1 and +12V2 combined output not to exceed 348W
    • Total output for +3.3V, +5V, +12V1DC, and +12V2DC not to exceed 386W
  • Dielectric withstand test: 1800V AC for 1 second from input to frame ground
  • Efficiency: Minimum 70% at nominal AC voltage with maximum loads
  • Rise Time: Less than 20ms on all outputs
  • Hold-up Time: Minimum 12ms at nominal input voltage
  • Power Good signal: Power on delay time 100 ~ 500ms, off delay 1ms minimum
  • Leakage Current: Not to exceed 3.5mA
  • MTBF: 100,000 hours at maximum load at +25°C
  • Cooling System: 1x 80mm cooling fan
  • Connectors: 1x 24pin main power, 1x 12V P4, 6x peripheral, 2x SATA, 1x floppy
  • Dimensions (WxLxH): 6 x 5.5 x 3.4 inches / 150 x 140 x 86 mm

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SPARKLE POWER
  • ATX-400PA
  • B0065SLWTE
  • 677808611457
  • New
  • 4.1 lbs
  • 5 X 5 X 5
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Sparkle Power • Part #: ATX-400PA • UPC: 677808611457 • ASIN: B0065SLWTE
