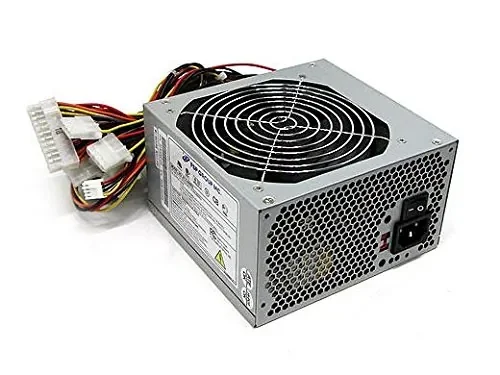

Sparkle Power ATX-350PN-B204 SPI Power Supply ATX-350PN-B204 350W ATX V2.0 12V internal Fan
Out of Stock
Condition: New
$61.64$83.21
Free Shipping for this Item
Product Overview
General InformationRemote ON/OFF functionNoise Killer (thermal fan speed control function)100% Hi-pot, ATE, and burn-in testedRe-settable power shut downHigh efficiency and reliability, low noise and rippleTechnical InformationSpecification Compliance: ATX12VNumber of Fans: 1Protection Type: Short CircuitProtection Type: Over VoltageProtection Type: Over CurrentReliabilityMTBF: 100000 HourPower DescriptionInput Voltage: 132 V ACInput Voltage: 264 V ACInput Voltage Range: 100 V AC to 132 V ACInput Voltage Range: 200 V AC to 264 V ACOutput Voltage: 3.3 V DCOutput Voltage: 5 V DCOutput Voltage: 12 V DCOutput Voltage: -12 V DCInput Current: 8 A @ 110VInput Current: 4 A @ 220VOutput Power: 350 WInterfaces/PortsReceptacles: 1 x 24-pin ATX MotherboardReceptacles: 1 x 4-pin ATX12V MotherboardReceptacles: 6 x 4-pin LP4 Peripheral DeviceReceptacles: 2 x Serial ATAReceptacles: 1 x 4-pin SP4 Floppy DrivePhysical CharacteristicsHeight: 3.4"Width: 5.9"Depth: 5.5"MiscellaneousAdditional Information: Switching Power SupplyCertifications & Standards: European Union Directive 2002/95/ECFCC part 15 subpart J class BCISPR 22 class BUL60950CSA C22.2 NO. 60950TUV EN60950VDE EN60950NEMKO EN60950 (CB Report)Environmentally Friendly: YesEnvironmental Certification: RoHS
Technical Specifications
Input Range - 100 to 132Vrms or 200 to 264Vrms, Manual selection Frequency - 47 to 63Hz Input Current - 8A (RMS) 115Vrms/60Hz, 4A (RMS) 230Vrms/50Hz Inrush Current - 100A Max cold start, 120A Max warm start measured at 264Vrms/50Hz Dielectric Withstand - Input to frame ground 1800V AC for 1 second Efficiency - 70percent minimum measured at nominal AC main voltage and frequency with maximum loads on all outputs Rise Time - Less than 20ms on all outputs Hold-up Time - 17ms minimum at nominal input voltage Power Good Signal - Power on delay time 100 ms to 500 ms, off delay 1ms minimum (TTL and CMOS compatible) Leakage Current - Not exceed 3.5mA MTBF - 100,000 hours on maximum load at 25 C Dimension (WxHxL) - 150x86x140mm / 6x3.4x5.5inches Insulation Resistance 20 Meg. Ohm Min.
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
SPARKLE POWER
ATX-350PN-B204
B0015TXJM6
677808610139
New
1 lbs
6 X 3 X 6
Mar 21, 2026
Jun 16, 2011
Product Identifiers:
Brand: Sparkle Power •
Part #: ATX-350PN-B204 • UPC: 677808610139 • ASIN: B0015TXJM6 • Category: Monitor Supplies
