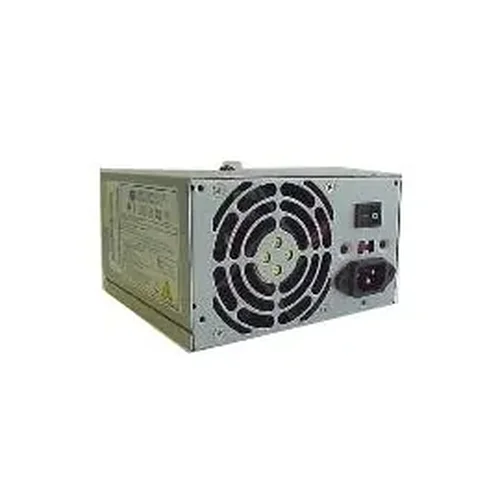

Sparkle Power ATX-350PA-B204 SPI ATX Power Supply 350W 20+4PIN with 8CM Fan

Out of Stock
Condition: New

$76.63  $103.45
 Free Shipping for this Item

Product Overview

The SPI ATX-350PA-B204 is a reliable 350W ATX power supply designed to meet the needs of your computer system. With its efficient performance and robust design, it ensures stable power delivery while keeping noise levels low.

Equipped with a 20+4 PIN connector and a quiet 8CM ball-bearing fan, this power supply is suitable for various applications. Its compact dimensions make it easy to install in most cases, and its manual voltage selection allows for flexibility in different electrical environments.

Technical Specifications

  • Input Characteristics: Input Range - +/-10% of 115Vrms/57-63Hz or 230Vrms/47-53Hz, Manual Selection
  • Input Current - 8A (RMS) 115Vac, 4A (RMS) 230Vac
  • Output Characteristics: Total output for this power supply is 350W
  • Temperature Range: Operating: 0°C - +50°C, Full load at 25°C, De-rate 2W/°C from 25°C to 50°C, Storage and shipping: -20°C - +65°C
  • Humidity - 5% to 95% operating and storage
  • Dielectric Withstand - Primary frame ground 1800V AC for 1 second
  • Efficiency - 70% minimum measured at normal AC mains voltage and frequency with full load
  • Rise time - Less than 20ms
  • Hold-up Time - 16ms minimum at nominal input voltage
  • Power Good Signal - Power on delay time 100 - 500ms, off delay 1ms minimum (TTL and CMOS compatible)
  • Leakage Current - Less than 3.5mA
  • MTBF - 100,000 hours on maximum load at +25°C
  • Dimensions: 140x150x86mm / 5.5x5.9x3.4inch

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SPARKLE POWER
  • ATX-350PA-B204
  • B005WT30M4
  • 677808610122
  • New
  • 0 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Sep 10, 2011
Product Identifiers: Brand: Sparkle Power • Part #: ATX-350PA-B204 • UPC: 677808610122 • ASIN: B005WT30M4 • Category: Monitor Supplies
