SKU: LD32IEAED8 |  Mfg. Part: ATX-300PN-B204  | UPC: 677808610092  |
 1 Reviews  |     Share

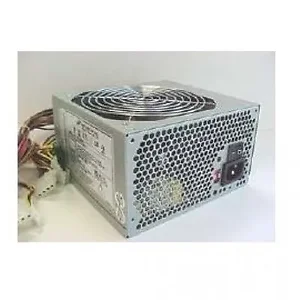

Sparkle Power ATX-300PN-B204 SPI 200W ATX Power Supply with 12cm Ball Bearing Fan

Out of Stock / 4 Sold
Condition: New

$61.05  $82.42
 Free Shipping for this Item

Product Overview

The SPI Power Supply ATX 300PN B204 is a reliable 200W power supply designed for desktop computers. With its efficient performance and low noise operation, it ensures stable power delivery for all your components. The integrated 12cm ball-bearing fan aids in optimal cooling, while the power supply complies with the ATX12V 2.0 standard for enhanced compatibility.

Technical Specifications

  • Input Range: 115Vrms (57-63Hz) or 230Vrms (47-53Hz) with manual selection
  • Insulation Resistance: Minimum 20 Mega Ohm
  • Input Current: 7A (RMS) at 115Vrms, 4A (RMS) at 230Vrms
  • Inrush Current: 100A max cold start, 120A max warm start
  • MTBF: 100,000 hours at maximum load (25°C)
  • Humidity: 90% operating, 95% storage
  • Dimensions (WxHxL): 150x86x140mm (6x3.4x5.5 inches)
  • Temperature Range: Operating at 0 to 25°C, de-rating 2W/°C from 25 to 50°C
  • Efficiency: 70% at nominal AC voltage and frequency with maximum load
  • Rise Time: Less than 20ms on all outputs
  • Hold-up Time: Minimum 17ms at 115V/230VAC
  • Power Good Signal: 100 ms to 500 ms power-on delay, 1ms minimum off delay
  • Leakage Current: Not exceeding 3.5mA
  • Dielectric Withstand: 1800V AC for 1 second from input to frame ground
  • Features Remote On/Off functionality
  • Integrated 12V DC fan with thermal control
  • High efficiency, low noise, and ripple for reliable performance

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SPARKLE POWER
  • ATX-300PN-B204
  • 677808610092
  • New
  • 5 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jun 16, 2011
Product Identifiers: Brand: Sparkle Power • Part #: ATX-300PN-B204 • UPC: 677808610092

Sparkle Power ATX-300PN-B204 SPI 200W ATX Power Supply with 12cm Ball Bearing Fan
