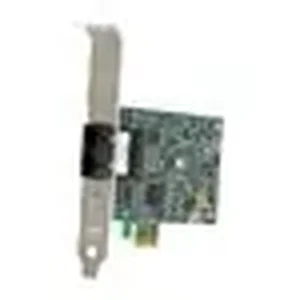

AT-2711FX/SC-901 - Allied Telesyn PCI EXPRESS X1 FIBER 100BASE-FX NETWORK ADAPTER

Allied Telesis Network interface card provides up to 100Mbps data transfer rate. Card offers you the maximum possible bandwidth and bus efficiency. Allied Telesis AT-2711FX/SC-901 Network interface card offers 1.2 miles of maximum transfer distance and supports ACPI function. Card with PCI express x1 interface features IEEE 802.1p standard and fast Ethernet data link protocol. Interface card with SNMP remote management protocol has Ethernet 100Base-FX cabling. Wired network interface card with plug-in card form factor features BCM5752 Broadcom processor and 72KB RAM. Desktop network interface card is use to give maximum possible bandwidth. Measures 2.7"H x 3"W. Features fast Ethernet data link protocol for high performance and transfers data at the rate of 100 Mbps. Supports PCI Express x1, SC 100Base-FX host interface for easy connectivity has plug-in-card form factor for economical ethernet network connection. Features status indicators on for link up, off link down and blink for activity. Supports Broadcom BCM57762 network controller for high performance. Consumes 2.0 W max. power and uses 3.3 signaling voltage. Meets IEEE 802.1p Quality of Service, IEEE 802.1Q VLAN tag, IEEE 802.1as 1588 precision time protocol, IEEE 802.1qat interface standards. Operates with the maximum cabling distance of Up to 6560' in full-duplex. MSI and MSI-x, IEEE 802.1x flow control, Audio/Video Bridging (AVB), IEEE 802.1p-based traffic prioritization, TCP Checksum RX/TX supported. Operates efficiently on Windows 8/7/Vista/XP (32-bit, 64-bit), Windows Server 2008, Windows Server 2008 R2 operating systems. Has a operating temperature of 0 - 50 deg C and -25 - 70 deg C storage temperature to adjust for all environmental conditions. Includes full-height bracket and low-profile bracket to connect easily for desktop. Meets RoHS, UL, FCC/EN55022 Class B, TUV, EN55024, CE, C-TICK, VCC, TAA certifications and standards. Weighs 50 g. Min operating system: Linux 2.4, Linux 2.

The ALLIED TELESYN AT-2711FX/SC-901 is a PCI Express x1 fiber 100Base-FX network adapter designed for business and IT environments requiring a dedicated fiber optic connection. This network interface card provides a stable 100 Mbps data transfer rate over fiber, suitable for extending network segments up to 6560 feet (approximately 1.2 miles) in full-duplex mode. It is intended for desktop systems that need reliable, high-bandwidth connectivity where copper-based Ethernet is not feasible or desired due to distance or interference concerns.

Equipped with a Broadcom BCM57762 processor and 72KB RAM, the AT-2711FX/SC-901 supports various industry standards including IEEE 802.1p Quality of Service, IEEE 802.1Q VLAN tagging, and IEEE 802.1x flow control. It operates efficiently on Windows 8/7/Vista/XP (32-bit, 64-bit), Windows Server 2008, and Windows Server 2008 R2, as well as Linux 2.4 and 2. It includes both full-height and low-profile brackets for flexible installation in various desktop chassis.
