Product Overview

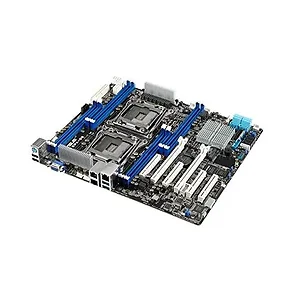

Asus Z10PA-D8 Server MotherboardBrand NewThe Asus Z10PA-D8 Server Motherboard integrates versatile features into a much smaller size allowing this board to fit into many ATX cases. Through innovative and top-notch engineering design, this board features server performance with compact design, enhanced storage expandability, premium components for premium efficiency. With the support of dual CPUs and a form factor fitting to PC ATX case, server rack and tower designs, this motherboard is ideal for small and medium business general purpose host server, web server, mail server, file server, storage server, and small or home-office applications.Z10PA-D8 Server Motherboard Features:Gigabit Ethernet Support: Yes ASPEED AST2400 Graphic Card 8 Memory Slots Expansion Slots: - 4x PCI Express x8 Slots - 2x PCI Express x16 Slot Form Factor: ATX Intel C612 PCH Chipset Socket Type: LGA 2011-3 Max. Memory: 512 GB Memory Module Supported: - RDIMM - LRDIMM Processor Features: - Manufacturer : Intel - Processor Number: 1017U RAM: - Max Supported Size: 512 GB - Technology : DDR4 - Speed : 2133 MHz Raid Levels : 0,1,5,10 Ports: - VGA - 2 x LAN - PS/2 Mouse Connecter - 2x USB 2.0 - 2x USB 3.0 - 10x SATA 6Gb/s Server Motherboard 2 Processors Supported Compliant Standards: - RoHS - Green Compliant Operating Temperature : +10° C to +35° C Storage Temperature: -40°C to +70°C Storage Humidity: 20% to 90%
Technical Specifications
Form Factor
ATX 12x13inch Chipset
Intel C612 PCH Processor
Intel Xeon Processor E5-2600 v3 Product Family Total Slots
8 (4-Channel per CPU, 4 DIMM Per CPU) Max Memory
512GB Memory Type
DDR4 2133/1866/1600/1333 RDIMM/LR-DIMM/NVDIMM TPM Header
1 Total Slots
6 Expansion Slots
Slot 1: PCI-E x8 (Generation 2 x4)
Slot 2: PCI-E x8 (Generation 3 x8)
Slot 3: PCI-E x16 (Generation 3 x16)
Slot 4: PCI-E x8 (Generation 3 x8)
Slot 5: PCI-E x16 (Generation 3 x16)
Slot 6: PCI-E x8 (Generation 3 x8 Link) SATA Controller
10 x SATA 6Gb/s Ports or 9 x SATA 6Gb/s Ports with 1 x M.2 Controller SAS Controller
Optional: PIKE II 3008 Networking
2 x Intel I210AT + 1 x Mgmt LAN IPMI
Yes by Default Item Dimension (L"xW"xH")
13.74 x 11.77 x 3.7
Weight
4.74 lb
Warranty Information
Asus 3 Years Limited
