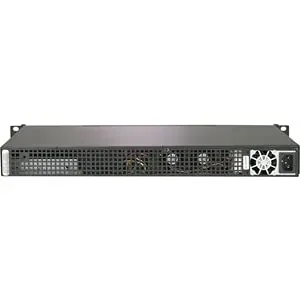

AS-5019D-FTN4 - Supermicro NR AMD EPYC 3000 SOC

Motherboard
Super M11SDV-8C-LN4F Processor/Cache
CPU
Single AMD EPYC 3251 SoC Processor
Cores
8 Core/16 Thread System Memory
Memory Capacity
4x DDR4 DIMM sockets
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Memory Type
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
128GB, 64GB, 32GB, 16GB, 8GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors
(using ECC memory) On-Board Devices
SATA
SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers
Quad Gigabit Ethernet LAN via IntelI350-AM4
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
Aspeed AST2500 BMC Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
4 RJ45 Gigabit Ethernet LAN ports (front)
1 RJ45 Dedicated IPMI LAN port (front)
USB
2 USB 3.0 ports (front)
VGA
1 VGA Port (front)
Others
TPM header Chassis
Form Factor
1U Rackmount
Model
CSE-505-203B
Available Colors
Black Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status) Expansion Slots
PCI-E
1 PCI-E 3.0 x16 slot
1 M.2 PCI-E 3.0 x4, 2280, M Key Drive Bays
HDD
Up to 2x 3.5" or 4x 2.5" SATA3 drive bays System Cooling
Fans
2x 40x28mm 4-PIN PWM fans Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
8.0 Amp (max.)
+5V standby
2.0 Amp (max.)
+12V
16 Amp (max.)
-12V
0.5 Amp (max.)
+3.3V
8.0 Amp (max.)
Certification
Gold Certified System BIOS
BIOS Type
AMI 64Mb Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
0^oC to 40^oC (32^oF to 104^oF)
Non-operating Temperature:
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing) Item Dimension (L"xW"xH")
18 x 10 x 2

Weight
12 lbs

Warranty Information
1 year
