- Motherboard: Super H12SSW-NT
- Processor/CPU: Single AMD EPYCTM 7002 Series Processor, Socket SP3, Support CPU TDP up to 240W
- Cores: Up to 64 Cores
- Memory Capacity: 8 DIMM slots, Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
- Memory Type: DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
- Chipset: System on Chip
- SATA: SATA3 (6Gbps)
- Network Controllers: Dual 10GBase-T LAN with via Broadcom BCM57416
- IPMI: Support for Intelligent Platform Management Interface v.2.0
- Video: ASPEED AST2500 BMC
- Expansion Slots: 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot, 2 PCI-E/SATA 3.0 x2 NVMe M.2 slots
- Drive Bays: 10 Hot-swap 2.5" SATA3 drive bays, Optional 2 U.2 NVMe (PCI-E 3.0) drive support via additional kit for NVMe devices
- Power Supply: 500W Redundant Power Supplies with PMBus, Total Output Power: 500W

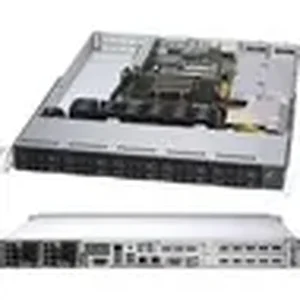

- Form Factor: 1U Rackmount
- Model: CSE-116TS-R504WBP
- Operating Environment: RoHS Compliant, Operating Temperature: 10oC - 35oC (50oF - 95oF), Non-operating Temperature: -40oC to 60oC (-40oF to 140oF)
- Weight: 46.00 LB
- Warranty Information: 1 year
Manufacturer Part Number:AS-1114S-WTRTUPC:672042367023Please let me know if you need any further updates or information.
