Product Overview

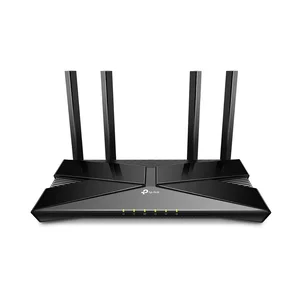

- Wi-Fi 6 Technology--Archer AX10 comes equipped with latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
- Next-Gen 1.5 Gbps Speeds--Archer AX10 dual-band router reaches fast speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
- Connect More Devices than Ever Before--Wi-Fi 6 technology simultaneously communicates more data to more devices using OFDMA and MU-MIMO while reducing lag.
- Triple-Core Processing--The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.
- More Reliable Coverage--Achieve the strongest, most reliable WiFi coverage with Archer AX10 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
- Increased Battery Life--Target Wake Time technology reduces your devices' power consumption to extend their battery life.
- Easy Setup--Set up your router in minutes with the powerful TP-Link Tether App
- Backward Compatible--Archer AX10 supports all previous 802.11 standards and all WiFi devices
Technical Specifications
HARDWARE FEATURES
Processor
1.5 GHz Triple-Core CPU
Memory
256 MB RAM
16 MB Flash
Interface
1 1000/100/10 Mbps WAN Port
4 1000/100/10 Mbps LAN Ports
Button
WPS/Wi-Fi On/Off Button, Reset Button, Power On/Off Button
External Power Supply
12 V / 1 A
Antenna
4 Fixed Omni-Directional Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Frequency
5 GHz and 2.4 GHz
Signal Rate
1201 Mbps (5 GHz, 11ax)
300 Mbps (2.4 GHz, 11n)
Compatible with 802.11a/b/g/n/ac Wi-Fi standards
Reception Sensitivity
5 GHz:
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm
Transmit Power
FCC:<30dBm(2.4 GHz 5.15 GHz5.825 GHz)
Wireless Functions
Enable/Disable Wireless Radio, WMM
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE
Management
Parental Control
Guest Network
DHCP
Server, DHCP Client List, Address Reservation
Dynamic DNS
DynDns, NO-IP, TP-Link
Guest Network
2.4 GHz guest network 1
5 GHz guest network 1
NAT
Port Forwarding, Port Triggering, UPnP, DMZ
OTHERS
Certification
FCC,RoHS
Package Contents
Wireless Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements
Microsoft Windows 98SE/NT/2000/XP/VistaTM/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Item Dimension (L"xW"xH")
13 x 10 x 3
Weight
3.00 LB
Warranty Information
2 year
