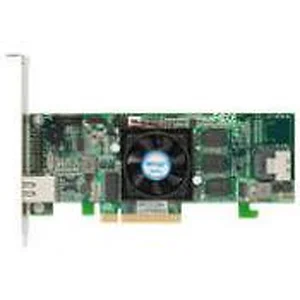

Areca Technology ARC-1212 Areca ARC 1212 Low Profile PCIe x8 SAS RAID Controller

Out of Stock
Condition: New

$4,302.33  $5,808.15
 Free Shipping for this Item

Product Overview

The Areca ARC 1212 is a high-performance RAID controller designed to manage multiple SAS/SATA drives effectively. With an advanced Intel processor and support for various RAID levels, this controller ensures data integrity and optimal performance for your storage needs.

Technical Specifications

  • System Architecture:
    • Intel 800MHz IOP348 I/O processor with SAS controller
    • PCI-Express x8 link host interface
    • 256MB on-board DDR2-533 SDRAM with ECC protection
    • Support write-through or write-back cache
    • Multi-adapter support for large storage requirements
    • BIOS boot support for greater fault tolerance
    • BIOS PnP (plug and play) and BBS (BIOS boot specification) support
    • Intel RAID engine support for extreme performance RAID 6 function
    • NVRAM for RAID configuration & transaction log
    • Redundant flash image for adapter availability
    • Battery Backup Module ready (Option)
    • RoHS Compliant
  • RAID Features:
    • RAID level 0, 1, 3, 5, 6, 30, 50, 60 or JBOD
    • Multiple RAID selection
    • Online array roaming
    • Online RAID level/stripe size migration
    • Online capacity expansion and RAID level migration simultaneously
    • Online volume set growth
    • Instant availability and background initialization
    • Automatic drive insertion/removal detection and rebuilding
    • Greater than 2TB per volume set (64-bit LBA support)
    • Disk scrubbing/array verify scheduling for automatic repair of all configured RAID sets
    • Support spin down drives when not in use to extend service life (MAID)
    • Support NTP protocol to synchronize RAID controller clock over the on-board Ethernet port
  • Disk Bus Interface:
    • Up to 4x SAS/SATA II HDDs (no expander capability)
    • Up to 3Gbps per drive port
  • Monitors/Indicators:
    • System status indication through global HDD activity/fault connector, individual fault connector, LCD/I2C connector, and alarm buzzer
    • SMTP support for email notification
    • SNMP support for remote management
    • Enclosure management (Serial bus and SGPIO) ready
  • RAID Management:
    • Field-upgradeable firmware in flash ROM
    • In-Band Manager:
      • Hot key "boot-up" McBIOS RAID manager via BIOS
      • Web browser-based McRAID storage manager via Http proxy server
      • Support Command Line Interface (CLI)
      • API library for customers to write monitor utility
      • Single Admin Portal (SAP) monitor utility
      • Disk Stress Test (DST) utility for production
    • Out-of-Band Manager:
      • Firmware-embedded web browser-based McRAID storage manager, SMTP manager, SNMP agent, and Telnet function via Ethernet port
      • API library for customers to write monitor utility
      • Support Push Button and LCD display panel
  • Host Bus Type: PCI-Express x8
  • Driver Connector: 1x SFF-8087
  • Operating System: Windows 2000/XP/Server 2003/Vista; Linux; FreeBSD; Novell Netware 6.5; Solaris 10 x86/x86_64; SCO Unixware 7.x.x; Mac OS X 10.x (EFI BIOS Support)
  • Form Factor: Low Profile
  • Dimension (HxL): 62 x 168 mm

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ARECA TECHNOLOGY
  • ARC-1212
  • 471277441068
  • New
  • 1.6 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jan 09, 2013
Product Identifiers: Brand: Areca Technology • Part #: ARC-1212 • UPC: 471277441068 • Category: Disk Controllers/RAID Cards
