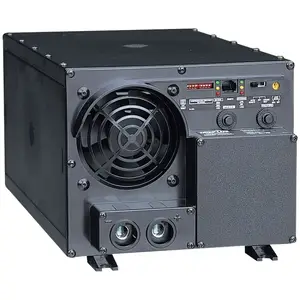

Tripp Lite APS2448UL PowerVerter, APS 2400W, Inverter/ Charger, Auto-Transfer Switching, UL Certification

OUTPUT Nominal Output Voltage(s) Supported
120V Frequency Compatibility
60 Hz Output Receptacles
Hardwire Output (Watts)
2400 Continuous Output Capacity (Watts)
2400 Peak Output Capacity (Watts)
4800 Output Voltage Regulation
LINE POWER (AC): Maintains 120V nominal sine wave output from line power source. INVERTER POWER (AC): Maintains PWM sine wave output voltage of 120 V AC (+/-5%). Output Frequency Regulation
60 Hz (+/- 0.3 Hz) Overload Protection
Includes 15A input breaker dedicated to the charging system and 20A output breaker for AC output loads. INPUT Nominal Input Voltage(s) Supported
120V AC Recommended Electrical Service
DC INPUT: Requires 48VDC input source capable of delivering 56A for the required duration (when used at full continuous capacity - DC requirements increase during Over-Power and Double-Boost operation). Maximum Input Amps / Watts
DC INPUT: Full continuous load - 56A at 48VDC. AC INPUT: 33 amps at 120VAC with full inverter and charger load (13A max charger-only / combined input load to support charger and AC output is automatically controllable to 66%-33%-0% based on AC output load Input Connection Type
DC INPUT: Set of 2 DC bolt-down terminals. AC INPUT: Hardwire via built in junction box with cover plate Voltage Compatibility (VAC)
120 Voltage Compatibility (VDC)
48 Expandable Battery RuntimeRuntime
is expandable with any number of user supplied wet or gel type batteries DC System Voltage (VDC)
48 Battery Pack Accessory (Optional)
98-121 sealed lead acid battery(optional)
