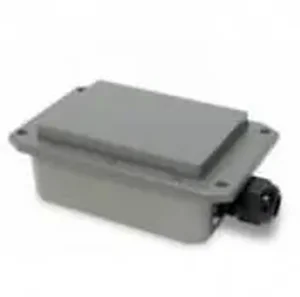

The Airlink101 Wireless N Outdoor AP Bridge is designed for robust outdoor networking, featuring a powerful 200mW output and a high-gain 15dBi antenna. It facilitates long-range connectivity, making it ideal for extending your wireless network in outdoor environments. With IP67/68 rated housing, this device withstands harsh weather conditions, ensuring reliable performance year-round.
| Specifications | Highest data rate of up to 300Mbps with IEEE 802.11n draft 2.0 standard |
|---|---|
| Operational modes | AP, WDS, Universal Repeater, CPE |
| Wireless Standards | IEEE 802.11a/n |
| Ethernet Port | 1x 10/100Mbps Ethernet with weatherproof connector |
| Built-In LED Indicators | Power, LAN, WLAN |
| Data Transfer Rate | 300Mbps (11n Draft 2.0); 54Mbps (11a) |
| Frequency Range | 5.150 - 5.825 GHz |
| Channel Spacing | 20MHz (11a); 20/40MHz (11n) |
| Operating Channels | 12 (Channels: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161) |
| Built-In Antenna | 15dBi Dual Polarization Directional Antenna |
| Input Power | 12~68 VDC |
| RF Output Power | 200mW |
| Transmit Power Variation | 23dBm |
| Receive Sensitivity | -97dBm |
| Power Consumption | 9W |
| Form Factor | Wall mountable and pole mountable; Die-Cast aluminum enclosure |
| Certifications | FCC, CE |
| Dimensions | 96 x 157 x 45 mm |
| Weight | 1.5 lbs / 0.68 kg |
