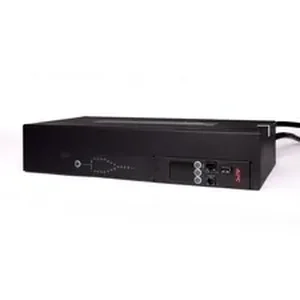

Apc - Schneider Electric AP4431 APC by Schneider Electric Rack ATS, 208V, 30A, (2) L6-30P in, (1) L6-30R Out - 1 x NEMA

General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP4431
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:Rack ATS, 208V, 30A, (2) L6-30P in, (1) L6-30R Out
Marketing Information:APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
Product Type:Automatic Transfer Switch

Technical Information

---

Plug/Connector Type:NEMA L6-30P
Receptacles:1 x NEMA L6-30R
Protection Type:Over Current

Power Description

---

Input Voltage:208 V AC
Output Voltage:208 V AC
Current:30 A

Physical Characteristics

---

Product Color:Black
Form Factor:Rack-mountable
Rack Height:2U
Height:3.5"
Width:17"
Depth:9.3"
Weight (Approximate):14.30 lb

Miscellaneous

---

Package Contents:

Rack ATS, 208V, 30A, (2) L6-30P in, (1) L6-30R Out

Mounting hardware

Rack mounting brackets

RS-232 configuration cable

Certifications & Standards:

• FCC Part 15 Class A
• ICES-003
• TUV-C
• TUV-NURTL
• VCCI Class A

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• TrV

Warranty

---

Limited Warranty:2 Year
