AOC-SGP-I4 - Supermicro Add-on Card AOC-SGP-i4

14 Available
Condition: New

$259.25  $349.99
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

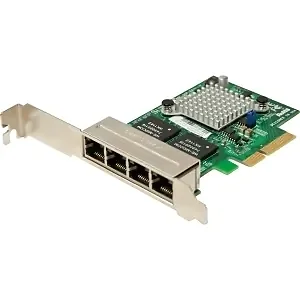

Supermicro Add-on Card AOC-SGP-i4 - Network adapter - PCI Express 2.1 x4 low profile - Gigabit Ethernet x 4 - for SuperServer 6016T-NTRF4+, 6017R-WRF

Expert Overview

The Supermicro AOC-SGP-I4 is a network adapter designed for business and IT environments requiring multiple Gigabit Ethernet connections. This low-profile PCI Express 2.1 x4 card features an Intel i350 GbE controller and four RJ-45 connectors, providing reliable network connectivity. It is suitable for organizations looking to expand network capabilities in compatible Supermicro SuperServer models, such as the 6016T-NTRF4+ and 6017R-WRF, or other server systems with a minimum PCI-E x4 slot. The card supports various operating systems including Windows, RedHat, SuSe, FreeBSD, and VMware ESX. Key features include IEEE 802.3az Energy Efficient Ethernet, virtualization support with Flexible Port Partitioning and SR-IOV, and performance enhancements like TCP/UDP checksum offloads and Jumbo Frames. This adapter helps address the need for increased network port density and efficient data handling in server infrastructure.

Technical Specifications

General:
- Intel i350 GbE controller
- Compact size low-profile standard form factor
- PCI-Express 2.1 x4 (2.5GT/s or 5GT/s) interface
- Four RJ-45 connectors
-Intel PROSet Utility for Windows Device Manager
- Intel I/O Acceleration Technology (I/O AT)
- Power consumption - about 5W Ethernet Features:
- IEEE 802.3 auto-negotiation for speed, duplex, and flow control
- IEEE 802.3x and 802.3z compliant flow control support
- Automatic cross-over detection function (MDI/MDI-X)
- 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
- IEEE 1588 protocol and 802.1AS implementation Power Management and Efficiency:
- IEEE 802.3az - Energy Efficient Ethernet (EEE) which reduces power consumption of the PHY by about 50%
- DMA Coalescing reduces platform power consumption
- Active State Power Management (ASPM) support
- LAN disable function
- MAC Power Management controls
- Low Power Link Up Link Speed Control Virtualization Features:
- VM to VM Packet forwarding (Packet Loopback)
- Eight TX and RX queue pairs per port to support VMWare NetQueue and Microsoft VMQ
- Flexible Port Partitioning: 32 Virtual Functions
- PC-SIG SR-IOV implementation
- IEEE 802.1q VLAN support
- IEEE 802.1q advanced packet filtering Performance Features:
- TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage Low Latency Interrupts
- Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage
- Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments
- Jumbo Frames support up to 9.5K Bytes
- Intelligent interrupt generation Remote Boot Options:
- Preboot eXecution Environment (PXE) support
- iSCSI remote boot for Windows, Linux, and Vmware OS Support:
- Windows XP SP3, Vista SP2, 7 SP1 2003 SP2, 2008 SP2, 2008 R2S
- RedHat EL 5.5, 6.0 SuSe SLES 10 SP3, 11 SP1
- FreeBSD 8.0
- VMware ESX 4.0, 4.1, 5.0
- Xen Cables Support:
- RJ-45 Category 5/5e Up to 100m Supported Platforms:
- Motherboards with minimum PCI-E x4 slot
- Server Systems with low-profile or full-height PCI-E x4 expansion slot Compliance:
- RoHS Item Dimension (L"xW"xH")
3.9 x 2.5 x 1

Weight
1.00 lb

Warranty Information
1 Yeas

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Supermicro
  • AOC-SGP-I4
  • B00MZ4LJ3G
  • 672042106226
  • New
  • 1 lbs
  • 8 X 2 X 6
  • Sep 02, 2026
  • Jan 09, 2013
  • US
Product Identifiers: Brand: Supermicro • Part #: AOC-SGP-I4 • UPC: 672042106226 • ASIN: B00MZ4LJ3G • Category: Network Cards

Frequently Asked Questions

What Supermicro SuperServer models is this network card compatible with?

This network adapter is compatible with Supermicro SuperServer 6016T-NTRF4+ and 6017R-WRF. It can also be used with other server systems that have a low-profile or full-height PCI-E x4 expansion slot.

What is included with the Supermicro AOC-SGP-I4?

The product is the Supermicro Add-on Card AOC-SGP-i4 itself. It features an Intel i350 GbE controller and four RJ-45 connectors. No additional cables are explicitly listed as included, but it supports RJ-45 Category 5/5e cables.

What type of PCI Express slot does this card require?

The Supermicro AOC-SGP-I4 requires a PCI Express 2.1 x4 slot. It is a low-profile standard form factor card.

Does this network card support virtualization features?

Yes, the card supports several virtualization features, including VM to VM Packet forwarding, eight TX and RX queue pairs per port for VMWare NetQueue and Microsoft VMQ, Flexible Port Partitioning with 32 Virtual Functions, and PC-SIG SR-IOV implementation.
