Technical Specifications
AW M14X CI5/2.4 14 8GB 750GB DVDR W7HP 64
Gaming is all about experience - the experience of visiting new worlds, of helping friends and crushing enemies, of showing off your skills. Give that experience a boost with the M14x. Own your opponents anywhere you please - bedroom, dorm room, coffee shop or friend's house. The Alienware M14x helps you stay in the game everywhere you go. Featuring lightweight, the M14x is designed to easily go with you anywhere and game anytime. The Alienware M14x laptop delivers the cutting-edge technology you need to obliterate anyone or anything that stands in your way.
*
MAIN SPECIFICATIONS

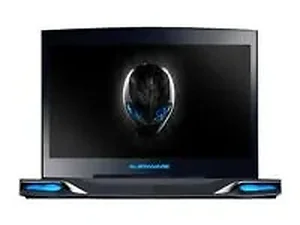

Product Description Dell Alienware M14x - Core i5 2430M 2.4 GHz - 14" TFT
Dimensions (WxDxH) 13.3 in x 10.2 in x 1.5 in
Weight 6.4 lbs
System Type Notebook
Built-in Devices Stereo speakers, wireless LAN antenna, Bluetooth antenna
Processor Intel Core i5 2430M / 2.4 GHz ( 3 GHz ) ( Dual-Core )
Cache Memory 3 MB
RAM 8 GB (installed) / 8 GB (max) - DDR3 SDRAM - 1333 MHz ( 2 x 4 GB )
Card Reader 9 in 1
Hard Drive 750 GB - Serial ATA-300 - 7200 rpm
Optical Storage DVD±RW
Display 14" WLED TrueLife TFT 1366 x 768 ( WXGA )
Graphics Controller NVIDIA GeForce GT 555M
Video Memory 3 GB
Audio Output Sound card
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE♊.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0
Wireless NIC Intel Centrino Wireless-N 1000
Notebook Camera Integrated - 2 Megapixel
Input Device Keyboard, touchpad
Power AC 230 V
Battery 8-cell lithium ion
Operating System Microsoft Windows 7 Home Premium 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Manufacturer Warranty 1 year warranty
General
System Type Notebook
Built-in Devices Stereo speakers, wireless LAN antenna, Bluetooth antenna
Width 13.3 in
Depth 10.2 in
Height 1.5 in
Weight 6.4 lbs
Color Stealth black
Processor
Processor Intel Core i5 2430M / 2.4 GHz
Max Turbo Speed 3 GHz
Multi-Core Technology Dual-Core
64-bit Computing Yes
Features Intel Turbo Boost Technology
Chipset Type Mobile Intel HM67 Express
Cache Memory
Installed Size 3 MB
RAM
Installed Size 8 GB / 8 GB (max)
Technology DDR3 SDRAM - 1333 MHz
Form Factor SO DIMM 204-pin
Configuration Features 2 x 4 GB
Storage Controller
Type Serial ATA
Storage
Hard Drive 750 GB - Serial ATA-300 - 7200 rpm
Optical Storage
Type DVD±RW
Card Reader
Type 9 in 1 card reader
Supported Flash Memory Cards SD Memory Card, Memory Stick, Memory Stick PRO, MultiMediaCard, xD-Picture Card, MMCplus, SDIO, SDHC Memory Card, xD-Picture Card Type H, SDXC Memory Card
Display
Display Type 14" TFT
LCD Backlight Technology WLED backlight
Max Resolution 1366 x 768 ( WXGA )
Widescreen Display Yes
Features TrueLife
Video
Graphics Processor / Vendor NVIDIA GeForce GT 555M
Video Memory 3 GB
Audio
Audio Output Sound card
Compliant Standards High Definition Audio
Audio Input Stereo microphone
Notebook Camera
Camera Type Integrated
Sensor Resolution 2 Megapixel
Input Device(s)
Type Keyboard, touchpad
Networking
Networking Network adapter
Wireless LAN Supported Yes
Wireless NIC Intel Centrino Wireless-N 1000
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE♊.11g, IEEE 802.11n, Bluetooth 3.0
Compliant Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 3.0
Expansion / Connectivity
Expansion Slot(s) 2 (total) / 0 (free) x memory - SO DIMM 204-pin
Interfaces[ x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x SuperSpeed USB 3.0 - 9 pin USB Type A 1 x Hi-Speed USB - 4 pin USB Type A 1 x audio / video - DisplayPort - Apple mini-DisplayPort 1 x audio / video - HDMI 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 2 x headphones / speakers - line-out - mini-phone stereo 3.5 mm 1 x audio - line-in/microphone - mini-phone 3.5 mm
Miscellaneous
Features Security lock slot (cable lock sold separately)
Power
Power Device External
Voltage Required AC 230 V
Power Provided 150 Watt
Output Voltage 19.5 V
Output Current 7.7 A
Battery
Technology 8-cell lithium ion
Installed Qty 1
Capacity 63 Wh
Operating System / Software
OS Provided Microsoft Windows 7 Home Premium 64-bit Edition
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year - pick-up and return
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 95 °F
Humidity Range Operating 10 - 90% (non-condensing)
Shock Tolerance 110 g @ 2ms half-sine pulse (operating) / 160 g @ 2ms half-sine pulse (non-operating)
